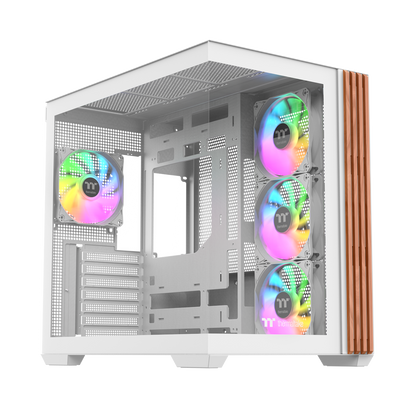

View 380 WS ARGB Mid Tower Case Snow Wood Edition

Name: View 380 WS ARGB Mid Tower Case Snow Wood Edition
Brand: Thermaltake USA
SKU: CA-1Z2-00M6WN-WS
Price: 189.0 AUD
Availability: InStock

SKU:CA-1Z2-00M6WN-WS

$189.00 AUD

Sale Sold out

Product variants

Quantity

The View 380 WS ARGB Snow Mid Tower Chassis is a dual chamber ATX chassis accented with stylish wood elements, supporting Hidden-Connector Motherboards from ASUS, MSI, and GIGABYTE, and equipped with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear.

View full details

Design
Specification
Download
How-to Videos

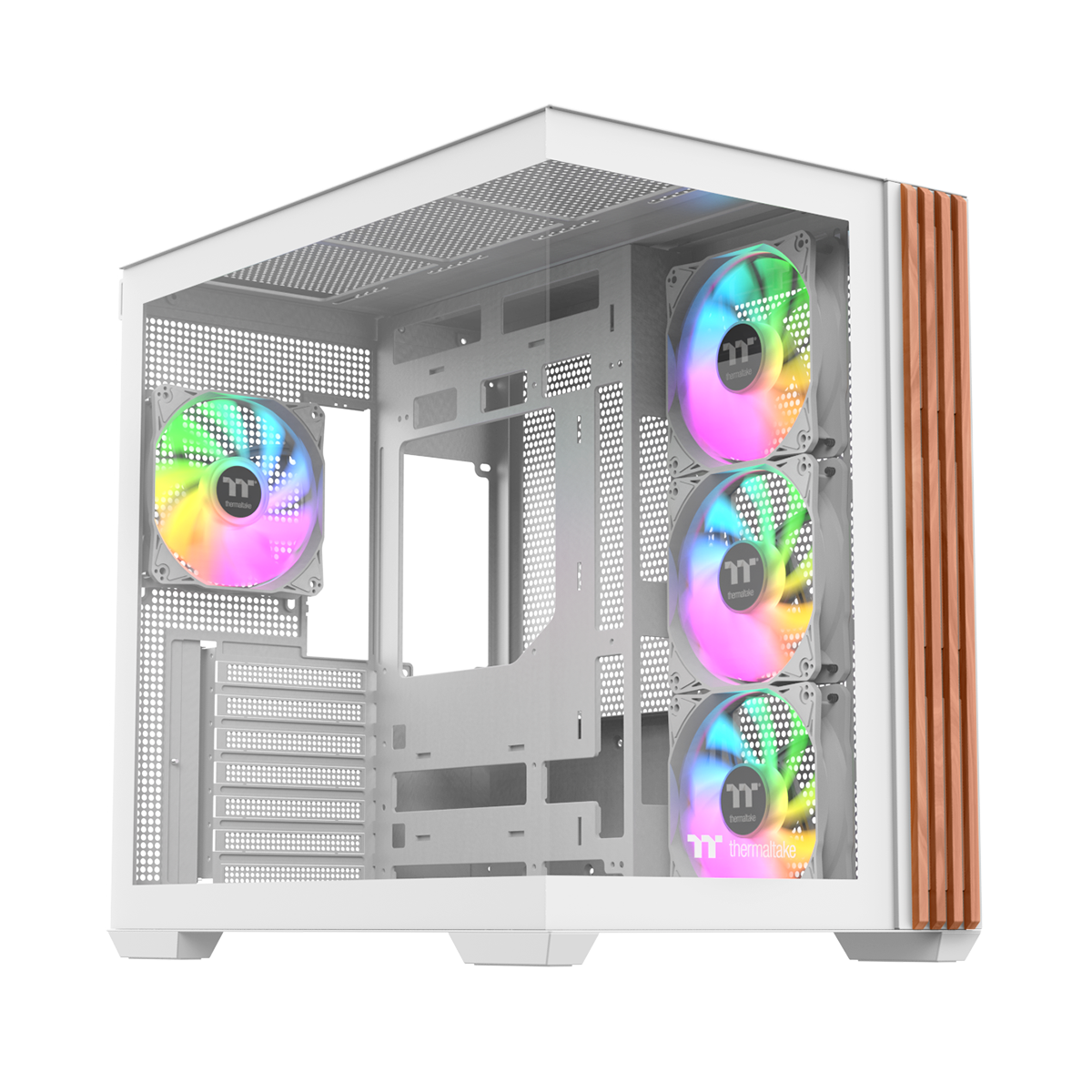

View 380 WS ARGB Mid Tower Chassis

The View 380 WS ARGB Mid Tower Chassis is a dual chamber ATX chassis accented with stylish wood, supporting Hidden-Connector Motherboards from ASUS, MSI, and GIGABYTE, and equipped with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, one 360mm radiator on the top and one 280mm/240mm radiator at the right, giving end-users greater flexibility to build their ideal configuration.

-->

The image is for reference only.

Hidden Connectors, Hidden Cables

Created for next-generation motherboards, the View 380 WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

The image is for reference only.

Dual Chamber Design

The dual chamber design provides more build space, better cable management, and improved airflow for better flexibility.

The image is for reference only.

Take in the View

The View 380 WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

The image is for reference only.

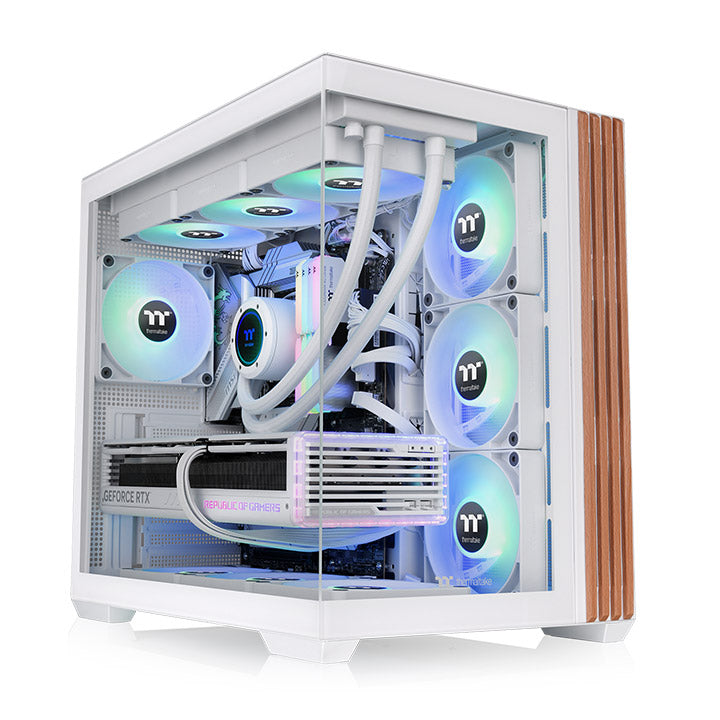

Up to 360mm Radiator Support

The View 380 WS ARGB is capable of accepting up to a 360mm radiator on the top of the chassis as well as up to a 280mm radiator on the side of the chassis. Check out the links below for some options from TT.

The image is for reference only.

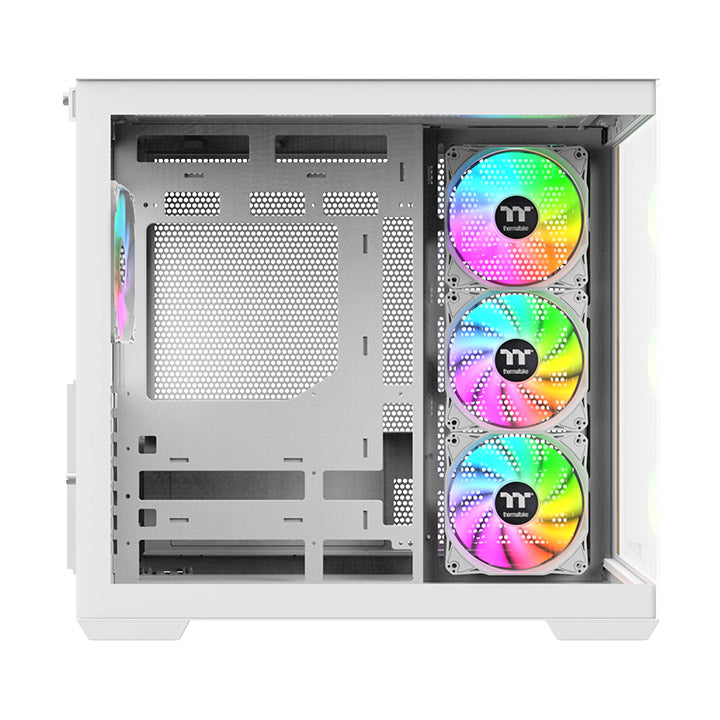

Fans to Get You Started

The View 380 WS ARGB comes with four 120mm ARGB Lite Fans pre-installed, with one at the rear of the chassis to provide exhaust and an additional three mounted on the side to provide intake. Daisy Chain connections make wiring simple, and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI and ASRock.

The image is for reference only.

Flexibility to Build Your Best

The View 380 WS ARGB Snow Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 415mm in length, and a power supply up to 200mm in length. Optimized for excellent cooling performance, the case comes with three 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear, with support for up to ten 120mm fans in total. For radiator compatibility, it can support up to a 360mm radiator on the top and bottom, or a 280mm/240mm radiator on the right, giving more options for high-end expansion!

120mm
140mm

120mm
140mm
240mm
280mm
360mm

The image is for reference only.

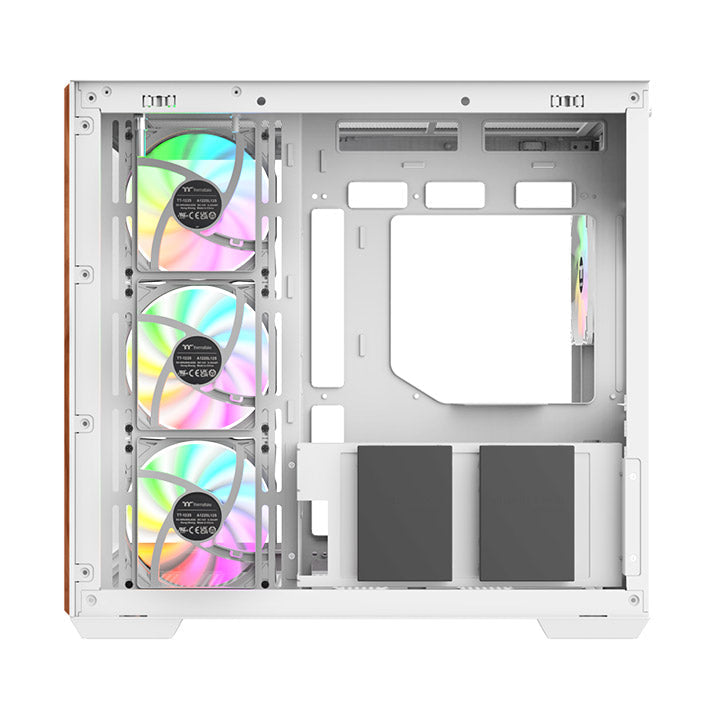

Storage for Your Storage

The View 380 supports up to two 2.5" SSDs on the outside of the support tray and can support one 3.5" HDD on the inside of the support tray.

The image is for reference only.

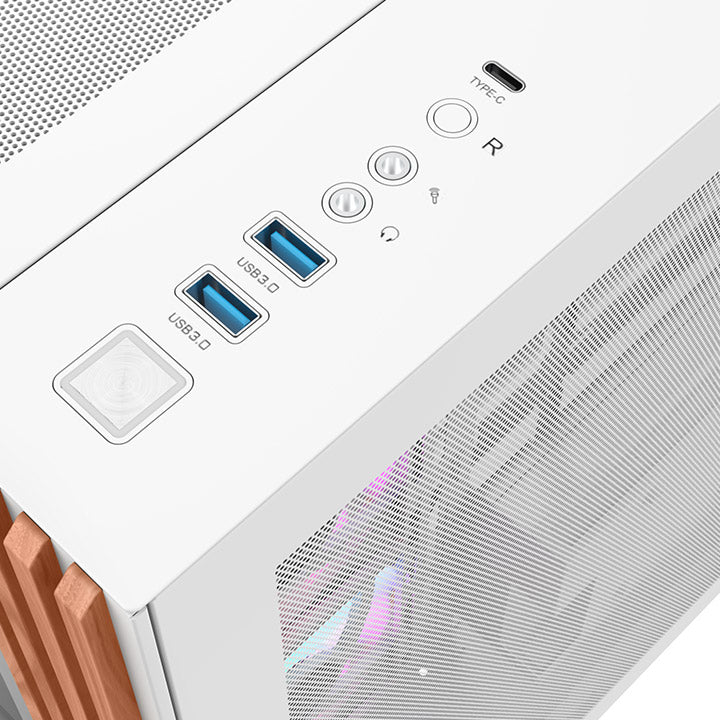

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type-C and one HD Audio are placed on the top panel to grant direct access when needed.

The image is for reference only.

All-in-One Compatibility List

	120	240	360	140	280	420
Front	-	-	-	-	-	-
Top	●	●	●	-	-	-
(M/B Side) Right	●	●	-	●	●	-
Rear	●	-	-	-	-	-
Bottom	-	-	-	-	-	-

DIY Liquid Cooling Compatibility

	120	240	360	140	280	420
Front	-	-	-	-	-	-
Top	●	●	●	-	-	-
(M/B Side) Right	●	●	-	●	●	-
Rear	-	-	-	-	-	-
Bottom	●	●	●	-	-	-

Fan Compatibility List

	120mm	140mm	200mm
Top	3	-	-
Right(M/B Side)	3	2	-
Rear	1	-	-
Power Cover	3	-	-

P/N	CA-1Z2-00M6WN-WS
Series	View
Case Type	Mid Tower
Dimensions	411 x 285 x 447 mm (16.18 x 11.22 x 17.6 inch)
Side Panel	3mm Tempered Glass x 2
Color	White
Material	SPCC
Cooling System	Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays	1 x 3.5”, 2 x 2.5”
Expansion Slots	7
Motherboard	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
Hidden-Connector Motherboard	9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Right: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm
Clearance	CPU cooler max height: 160mm VGA max length: 415mm PSU max length: 200mm

User Manual

File Name
Description
Size
Version
Release Date

View 380 WS ARGB Mid Tower Chassis Manual
Manual
2025-09-08
