AX1000 TG AI Workstation Chassis

Name: AX1000 TG AI Workstation Chassis
Brand: Thermaltake Australia
SKU: CA-11W-00F1WN-00
Price: 1099.0 AUD
Availability: OutOfStock

SKU:CA-11W-00F1WN-00

$1,099.00 AUD

Sale Sold out

Product variants

Quantity

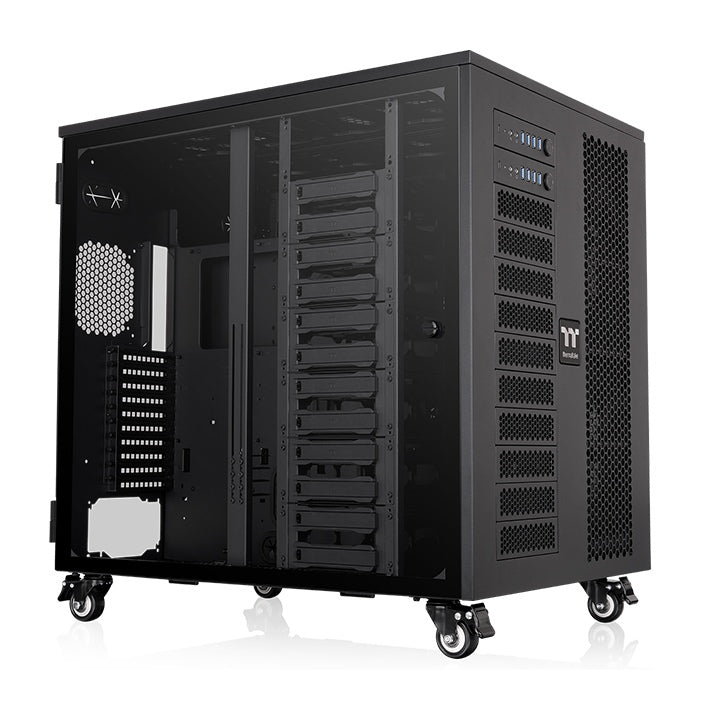

The AX1000 TG AI Workstation Chassis features a steel and tempered glass side panel design, built for high-performance workstation builds. It supports dual-system motherboards up to XL-ATX and SSI-EEB for maximum flexibility. With up to 24 drive bays and extensive multi-panel fan support, AX1000 TG delivers massive storage capacity and optimized airflow.

View full details

Design
Specification
Download
How-to Videos

AX1000 AI Workstation Chassis Series

AX1000 TG

AX1000

The image is for reference only.

Motherboard

SSI-EEB
XL-ATX
E-ATX

Fan Support

Up to twenty-nine
120/140mm fans

AIO Support

360/420mm

DIY Radiator Support

480/560mm

Dimensions (mm)

685 × 489.6 × 684

Clearance (mm)

CPU Cooler: 190
GPU: 360mm (with HDD Cage)
630mm (without HDD Cage)
Power Supply: 220

I/O Ports

Left System: USB Type-C ×1
USB 3.0 ×4
HD Audio ×1

Right System: USB Type-C ×1
USB 3.0 ×4
HD Audio ×1

Storage

2 × 5.25" & 24 × 3.5" HDDs / 2.5" SSDs

The image is for reference only.

Versatile Expandability

AX1000 TG AI Workstation Chassis and AX200 pedestal offer multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level.

Learn More About AX200

AX1000 chassis with AX200 bottom pedestal

AX1000 chassis with AX200 top and bottom pedestals

AX1000 chassis side view with AX200 pedestal

The image is for reference only.

Left Side

Right Side

The image is for reference only.

Dual SSI-EEB Motherboard Support

Supports up to dual server-grade SSI-EEB motherboards for AI computing, virtualization, and parallel workloads.

Premium Cooling Solutions

Supports up to twenty-nine 120mm/140mm fans and dual 560mm DIY or 420mm AIO radiators on top for optimal thermal performance.

The image is for reference only.

GPU Holder

The AX1000 TG AI Workstation chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

The image is for reference only.

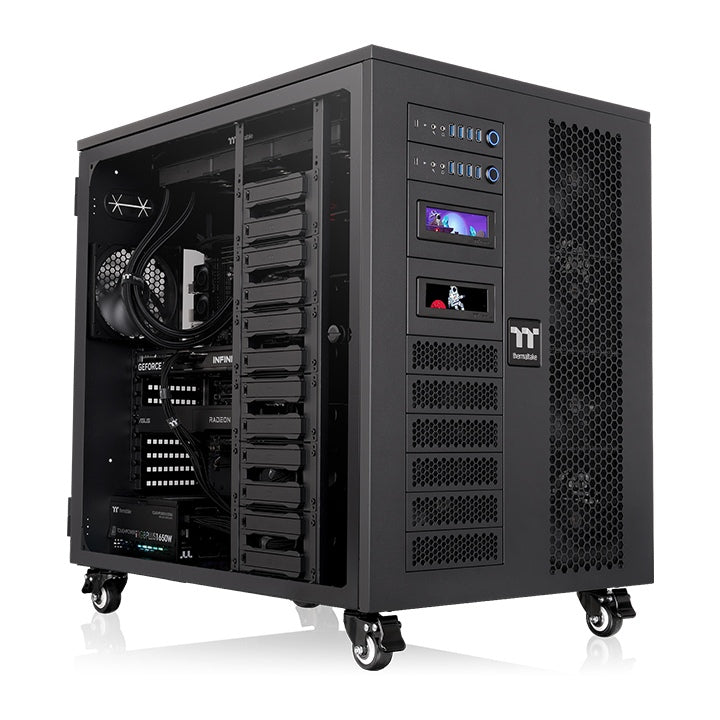

Visually Pleasing, Totally Interactive

Maximize your AX1000 TG’s visual effects by upgrading it with our LCD Screen Kit.

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

LEARN MORE ABOUT LCD SCREEN KIT

The image is for reference only.

Personalize Your LCD Display

Through TT RGB Plus, the 3.9" LCD display presents real-time information and plays JPG and GIF files with 128 × 480 resolution. Users can also display time and weather information, bringing personalized visual aesthetics and highly customizable functions to your build.

The image is for reference only.

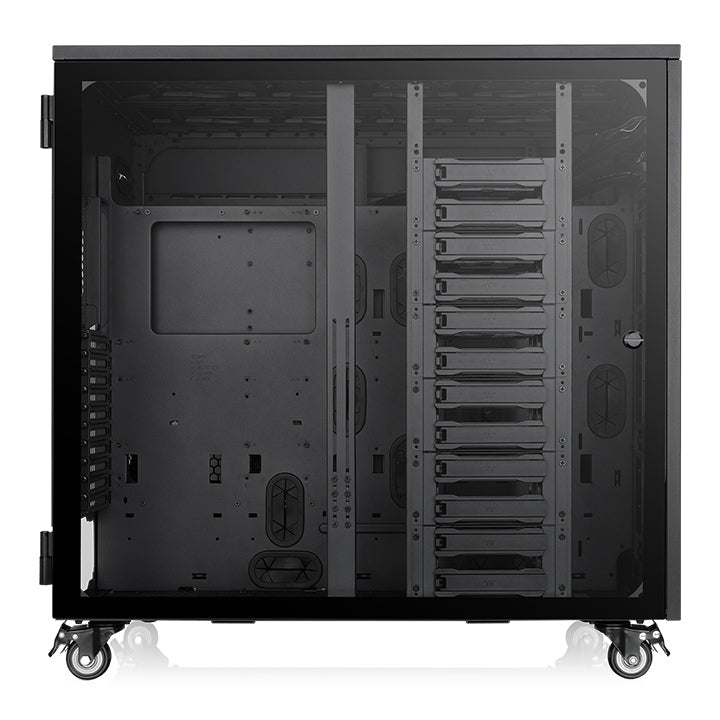

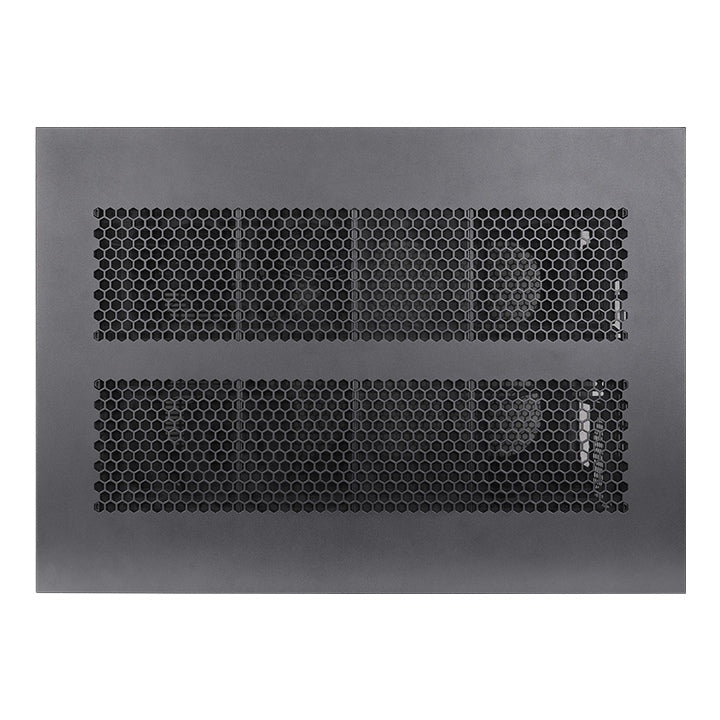

One Tempered Glass and One Perforated Side Panel

The tempered glass left side panel provides the better visibility and the perforated right side panel ensures better airflow, and the hinged design gives the easy access.

The image is for reference only.

Perfect Dust Protection

The AX1000 TG AI Workstation Chassis featuresdust filters on the front, top, bottom, and motherboard sides to protect the system.

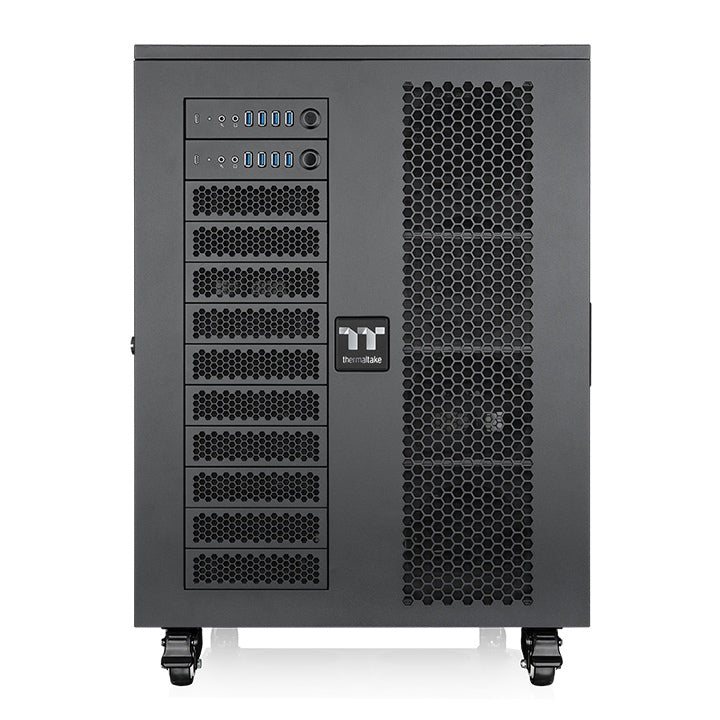

Handy I/O Ports

Front-located I/O ports consist of following functions:

Power Button with Integrated Power LED
HDD LED
USB 3.0 Type-A × 4
USB 3.2 Gen 2 Type-C × 1
HD Audio

The image is for reference only.

Fan Compatibility List

	120mm	140mm
Front	7	7
Top	8	8
Rear	2	2
Bottom	4	4
Right Side	8	8

The image is for reference only.

All-in-One Compatibility List

	240mm	360mm	480mm	280mm	420mm	560mm
Front			—		—	—
Top			—			—
Rear	—	—	—	—	—	—

AX1000 TG all-in-one radiator compatibility diagram

The image is for reference only.

DIY Radiator Compatibility List

	240mm	360mm	480mm	280mm	420mm	560mm
Front			—		—	—
Top
Rear	—	—	—	—	—	—

AX1000 TG DIY radiator compatibility diagram

The image is for reference only.

P/N	CA-11W-00F1WN-00
Model	AX1000 TG
Series	AX Series
Case Type	Super Tower
Dimensions	685x 489.6 x 684 mm (26.97 x 19.28 x 26.93 inch)
Side Panel	Steel + TG
Color	Black
Material	SPCC
Drive Bays	2 x 5.25” 24 x 3.5’’ or 2.5’’ (HDD Cage)
Expansion Slots	10 + 10
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX), 13.6” x 10.4” (XL-ATX), SSI-CEB, SSI-EEB
Hidden-Connector Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX), 13.6” x 10.4” (XL-ATX), SSI-CEB, SSI-EEB
I/O Port	( USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 ) x 2 sets
PSU	( USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 ) x 2 sets
Fan Support	Front: 7 x 120mm, 7 x 140mm Top: 8 x 120mm, 8 x 140mm Rear: 2x 120mm, 2 x 140mm Bottom: 4 x 120mm, 4 x 140mm Right Side: 8 x 120mm, 8 x 140mm
Radiator Support	Front: 1 x 360mm (MAX), 1 x 280mm Top: 2 x 360mm (MAX), 2 x 420mm (MAX) Rear: 2 x 120mm, 1 x 140mm
Clearance	CPU cooler height limitation: 190mm VGA length limitation: 360mm(with HDD Cage) 630mm(without HDD Cage) PSU length limitation: 220mm (with two bottom fans)
