CAPO X Curved TG Dual System Micro Case Black Edition

CAPO X Curved TG Dual System Micro Case Black Edition

CA-12D-00S1WN-00

$309.00 AUD
$309.00 AUD
Sale Sold out

The CAPO X Dual System Chassis supports two independent systems in one chassis.

Featuring a 4mm tempered glass side panel and dedicated I/O for both systems, it supports up to 420mm GPUs, 180mm CPU coolers, and flexible cooling configurations with radiator support up to 420mm.

More than just a dual-system chassis, the CAPO X unlocks new possibilities for how you work, create, and play. It supports AI agent workspace, shared setup, and streaming without limits, delivering flexible performance for modern users.

View full details

CAPO X Dual System Chassis

Two Systems. Zero Compromises.
CAPO X Dual System Chassis
The image is for reference only.
The image is for reference only.

AI Agent Workspace

CAPO X keeps two systems fully separated, letting AI agents run heavy or sensitive tasks on one system safely. Files move through the cloud, so the main system stays protected. With a stacked design and dual I/O panels, both systems stay easy to access on one desk.

The image is for reference only.

Shared Setup

For couples, roommates, or friends sharing a desk, CAPO X gives each person their own system in one setup. The stacked design saves space and keeps the desk neat. With one-piece, both builds are fully visible in a clean, balanced look.

The image is for reference only.

Streaming Without Limits

CAPO X separates gaming and streaming into two systems. One runs your game; the other handles streaming and chat. So your stream stays smooth, even when your gameplay gets heavy.

Motherboard
Mini ITX/Micro ATX
SIDE PANEL
4mm TG x 1
Fan Support
Up to thirteen 120mm fans
AIO Support
420/360/280/240/140/120mm
PC Case
Dimensions (mm)
691 x 305 x 448 (H x W x D )​
Clearance (mm)
CPU Cooler: 180
GPU: 420
Power Supply:​
Top System : Max 250​
Bottom System : Max 250​
I/O Ports
Top System : USB Type-C x 1
USB 3.0 x 2
HD Audio x 1
Bottom System : USB Type-C x 1
USB 3.0 x 2
HD Audio x 1
Storage
2 × 3.5” HDD
5 x 2.5 SSD

The image is for reference only.

The image is for reference only.

Dual Motherboard Support

The motherboard tray supports the latest hidden-connector Micro-ATX boards, including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH. It also supports up to two M-ATX motherboards in one case, making dual-system builds simple and clean.

SOLID STRUCTURAL PANEL

Structural panels are designed with 1mm SPCC steel to support the load of two systems, ensuring enhanced stability and durability​.

Solid Structural Side Panel
The image is for reference only.

Good Radiator Support

For good cooling support, users can place a 360mm radiator on the top and motherboard side simultaneously.

Find out more about our 360mm AIO
Good Radiator Support
The image is for reference only.

AIR INTAKE AND EXHAUST

CAPO X still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

CAPO X Snow Air Intake and Exhaust
The image is for reference only.

We've Tested Everything, So You Don’t Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The CAPO X products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while pairing with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

The image is for reference only.

Test System

ChassisCAPO X Snow
MotherboardROG Strix B850-G Gaming WiFi
CPUAMD Ryzen™ 9 7950X
GPUZOTAC GAMING GeForce RTX 5080 SOLID OC White Edition
MemoryTOUGHRAM XG RGB D5
HDDLEXAR NQ7A1 2280 PCIe Gen4x4 NVMe SSD
Power SupplyTOUGHPOWER GT Snow 1200W
FanSWAFAN 120/140 EX INFINITY ARGB Sync PC Cooling Fan - Snow
CPU CoolerMAGCurve 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition
ChassisCAPO X Snow
MotherboardROG Strix B860-G Gaming WiFi
CPUIntel® Core™ Ultra 9 Processor 285
GPUZOTAC GAMING GeForce RTX 5080 SOLID OC White Edition
MemoryTOUGHRAM XG RGB D5
HDDLEXAR NQ7A1 2280 PCIe Gen4x4 NVMe SSD
Power SupplyTOUGHPOWER GT Snow 1200W
FanSWAFAN 120/140 EX INFINITY ARGB Sync PC Cooling Fan - Snow
CPU CoolerMAGCurve 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

Thermal Test Report

Intel Test Data

AMD Test Data

System Core TDP Performance (W) Temperature Performance (°C)
Intel CPU 200.04 75
GPU 360.91 68
AMD CPU 178.83 85
GPU 361.28 70
Notes: Under the factory default TDP settings, with Intel defaulted to 200W and AMD defaulted to 175W, a burn-in test was conducted to observe temperature and power consumption performance. Temperature and power consumption performance are normal. No black screens or system crashes occurred during the 30-minute stress test, leading to an OK judgment.
View Full Thermal Test Report

FLEXIBLE STORAGE SUPPORT

  • The top drive mounting area supports Three 2.5" SSDs, or One 3.5" HDD and Two 2.5" SSDs.​
  • The bottom drive mounting area supports Two 2.5" SSDs, or One 3.5" HDD and One 2.5" SSD​
Flexible Storage Support
The image is for reference only.
Built-in GPU Holders
The image is for reference only.

BUILT-IN GPU HOLDERS

CAPO X features two independent built-in GPU holders, providing enhanced support to prevent GPU sag.

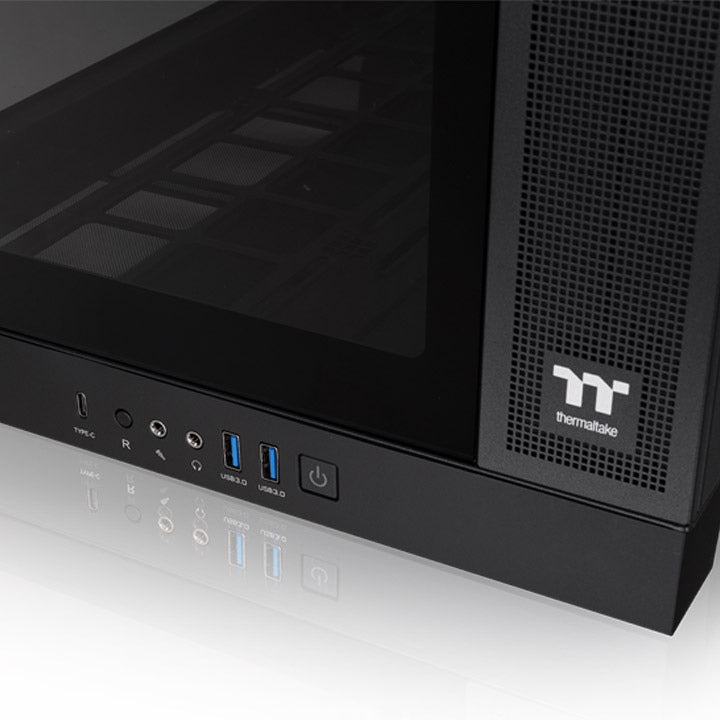

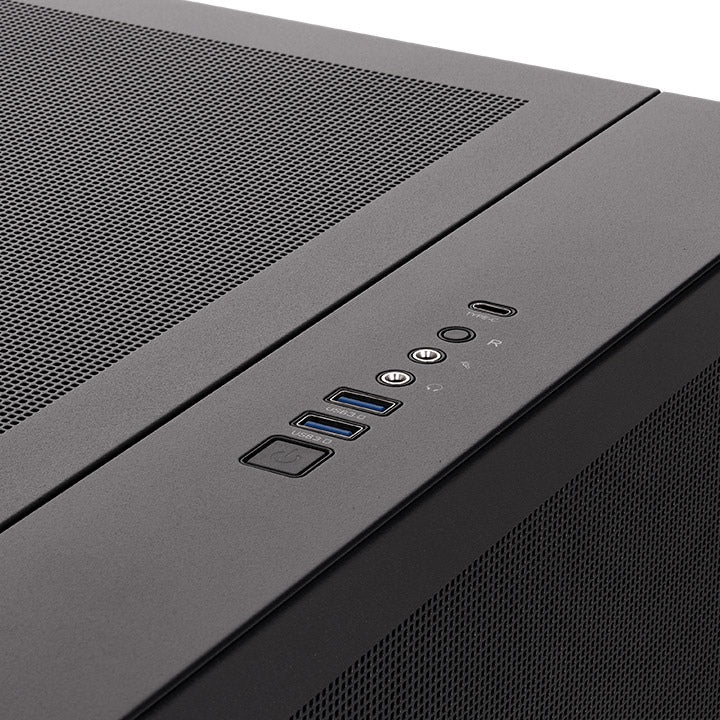

TOP AND BOTTOM I/O PORTS

TOP SYSTEM

Two independent I/O panels engineered for each system — top-right access for the upper system and front-bottom placement for the lower system.

POWER BUTTON
RESET BUTTON
HD AUDIO
2 × USB 3.0 TYPE-A
1 × USB 3.2 GEN 2 TYPE-C
Top and Bottom I/O Ports
Top and Bottom I/O Ports
The image is for reference only.

Fan Compatibility List

120mm 140mm 200mm
Right 5 4 -
Top 3 2 -
Rear Upper 1 1 -
Rear Lower 1 1 -
Bottom 3 2 -

All-in-One Compatibility List

120mm 240mm 360mm 140mm 280mm 420mm
Top -
Right
Rear Upper - - - -
Rear Lower - - - -
```
