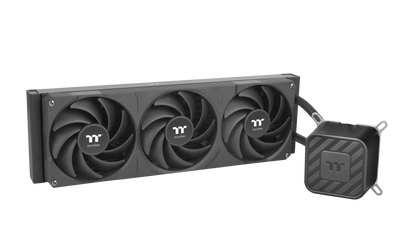

OB360 AIO Liquid Cooler
OB360 AIO Liquid Cooler
SKU:CL-W512-PL12BL-A
Couldn't load pickup availability

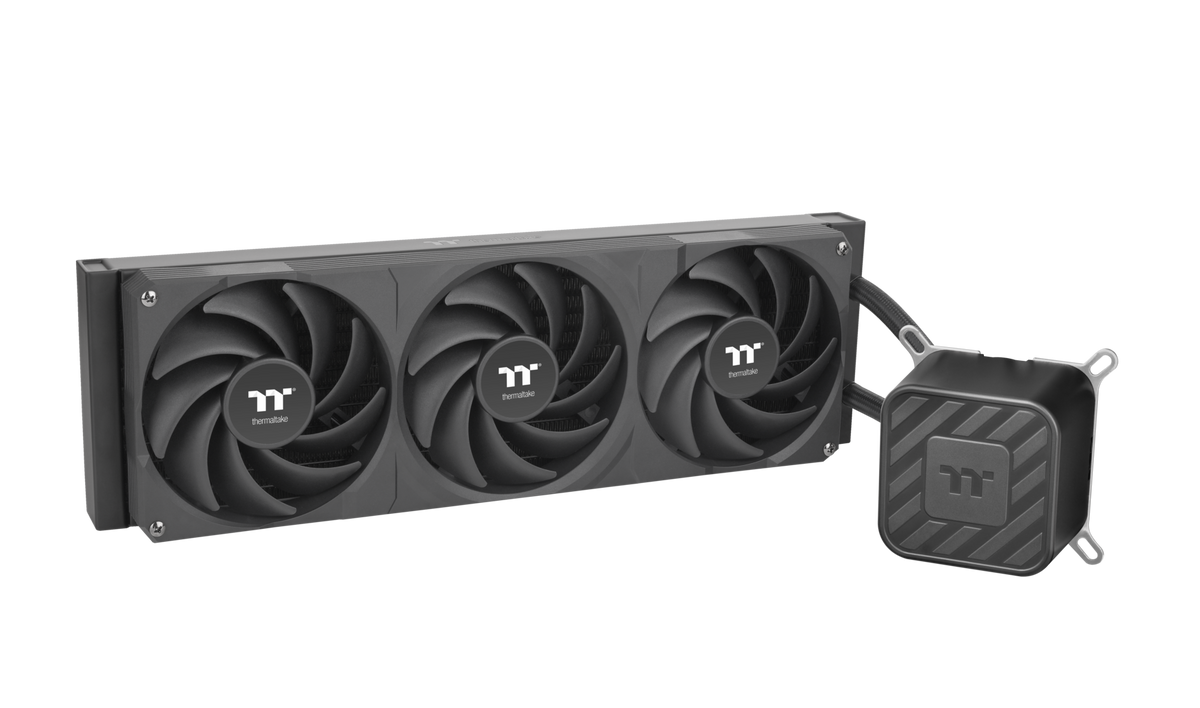

The OB360 AIO Liquid Cooler combines powerful cooling performance with a refined industrial aesthetic. Featuring a 360mm single-frame fan design equipped with high static pressure fans, it delivers efficient heat dissipation for demanding systems with support for up to 360W TDP. Diagonal textured grooves and embossed detailing define its distinctive industrial look.
-
Design
-
Specification
-
Download
-
How-to Videos
Industrial Textured Aesthetics

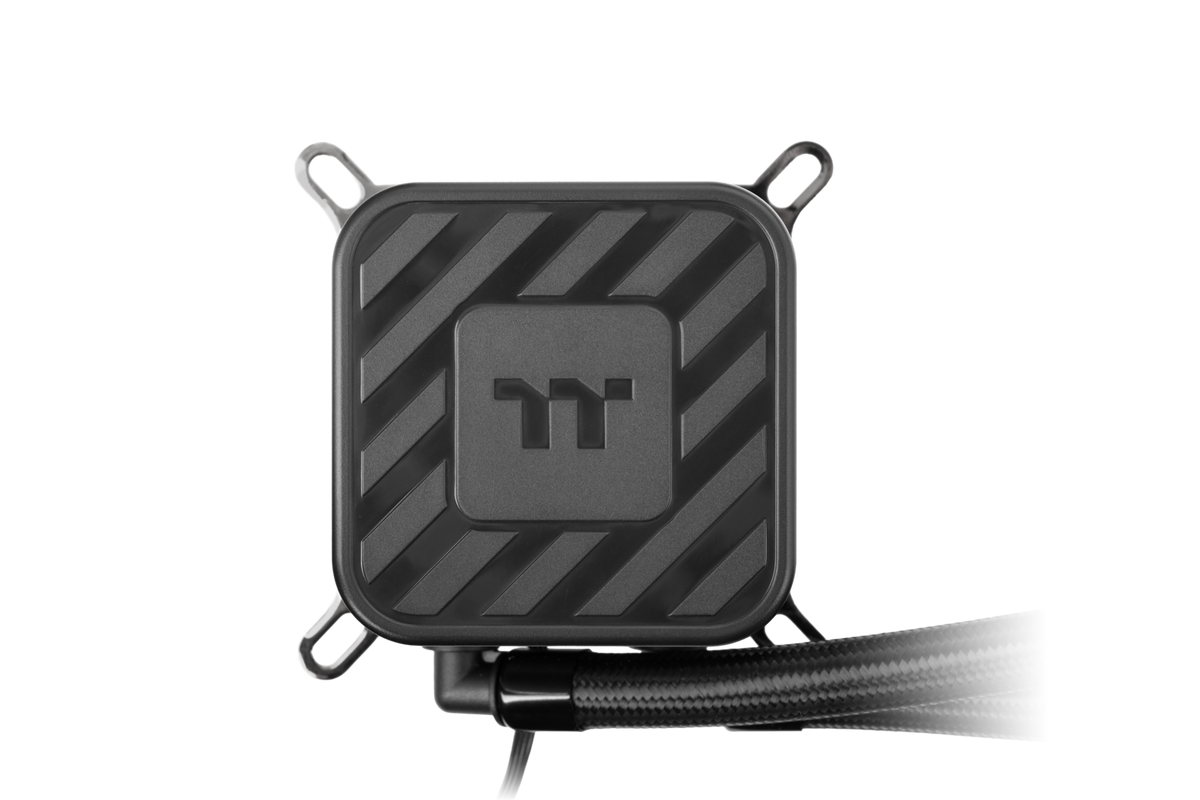

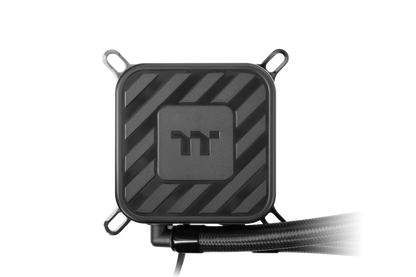

The water block features a refined black finish with diagonal textured grooves that add depth and character to its understated design. Subtle embossed detailing on the fan frame further enhances its industrial aesthetic, creating a distinctive look with bold, refined character.
Engineered for optimized cable management, the single-frame fan design minimizes cable clutter, making installation faster and easier. It ensures a neat and sleek appearance, keeping your AIO liquid cooler looking professional.

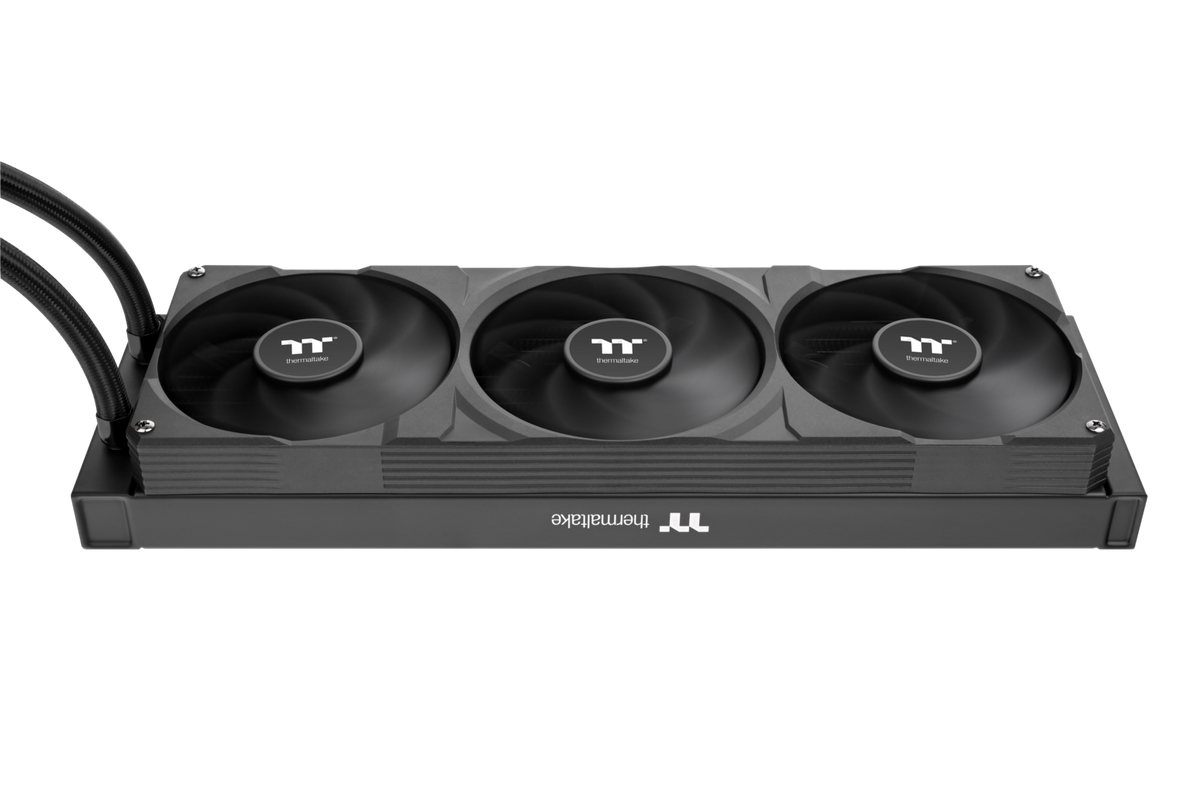

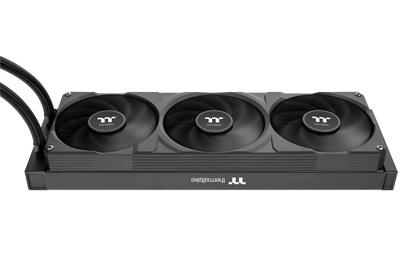

OB360 AIO Liquid Cooler has a powerful 360mm PWM fan module, a single-frame unit combining three 120 mm fans. Each fan provides an airflow of 53.9 CFM with 2.36 mm-H2O static pressure while maintaining a low noise level of 32.3 dB-A, offering exceptional cooling performance for your system.

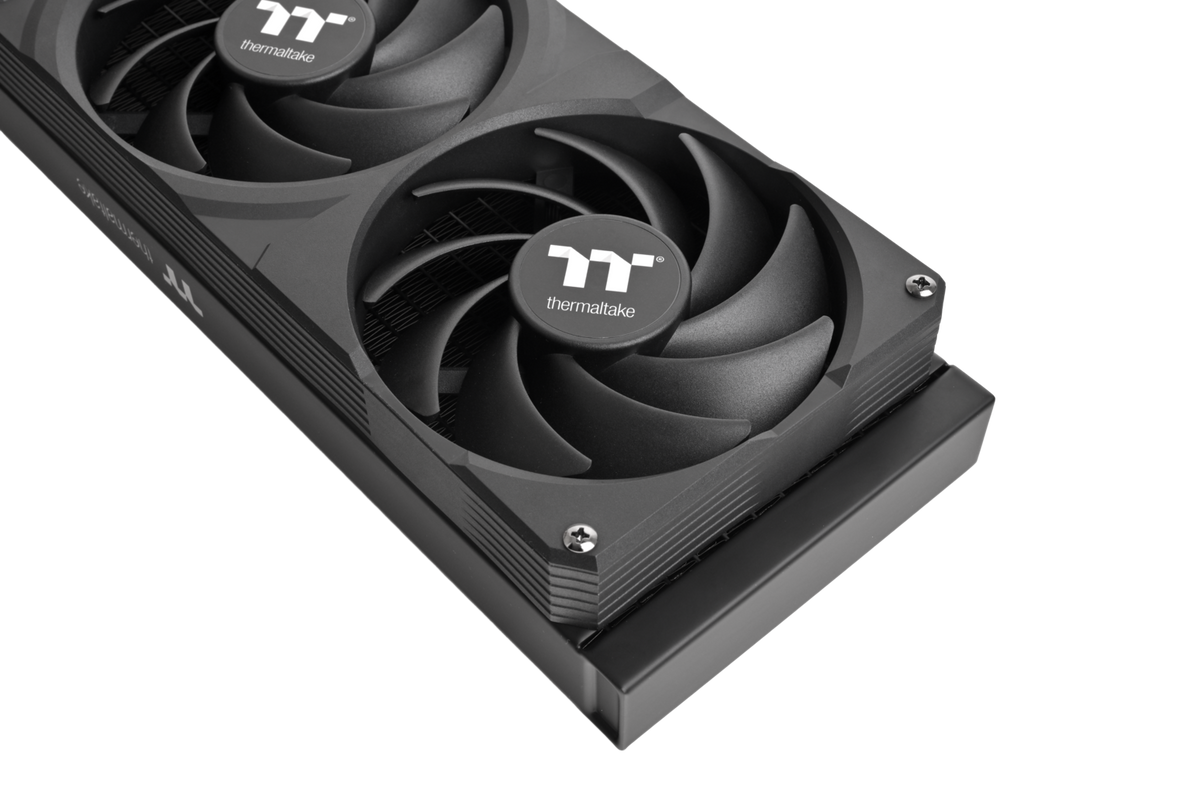

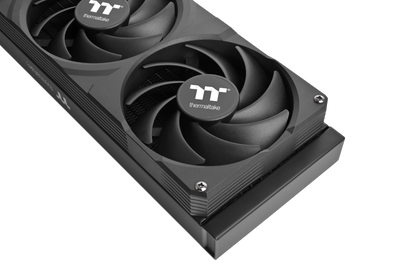

The OB360 AIO Liquid Cooler Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

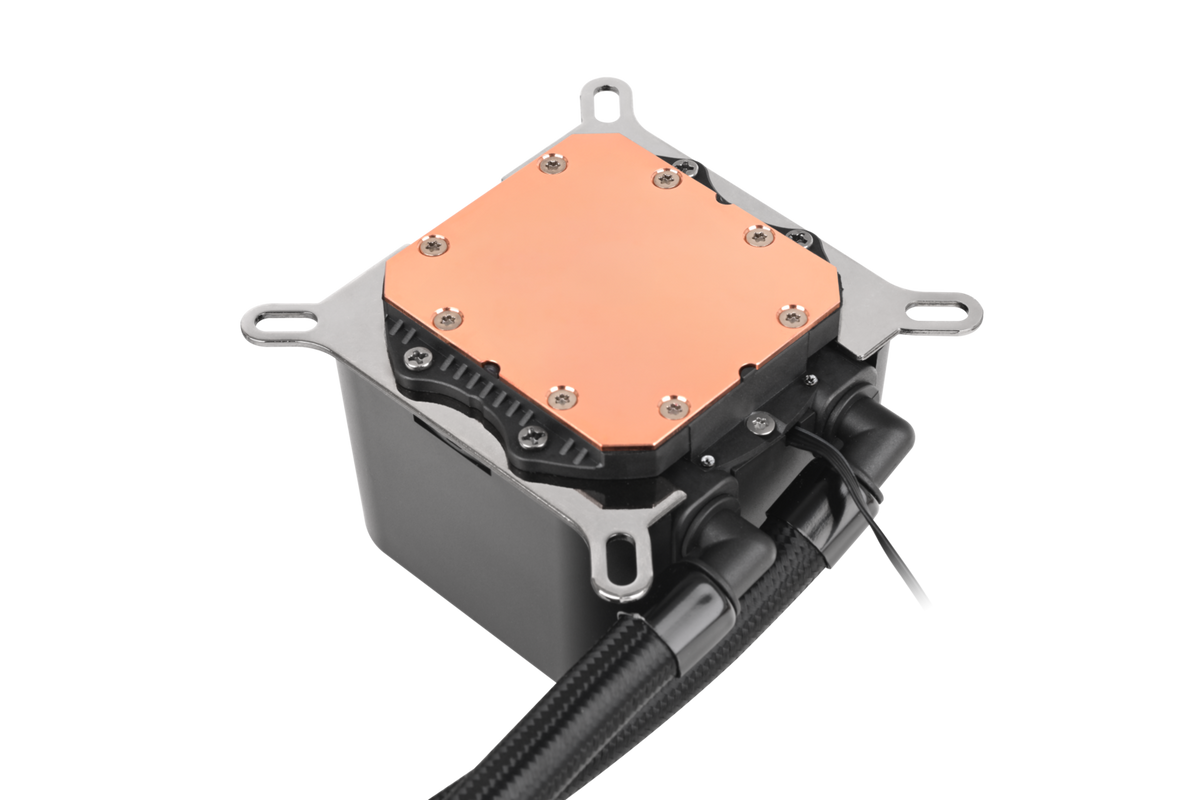

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

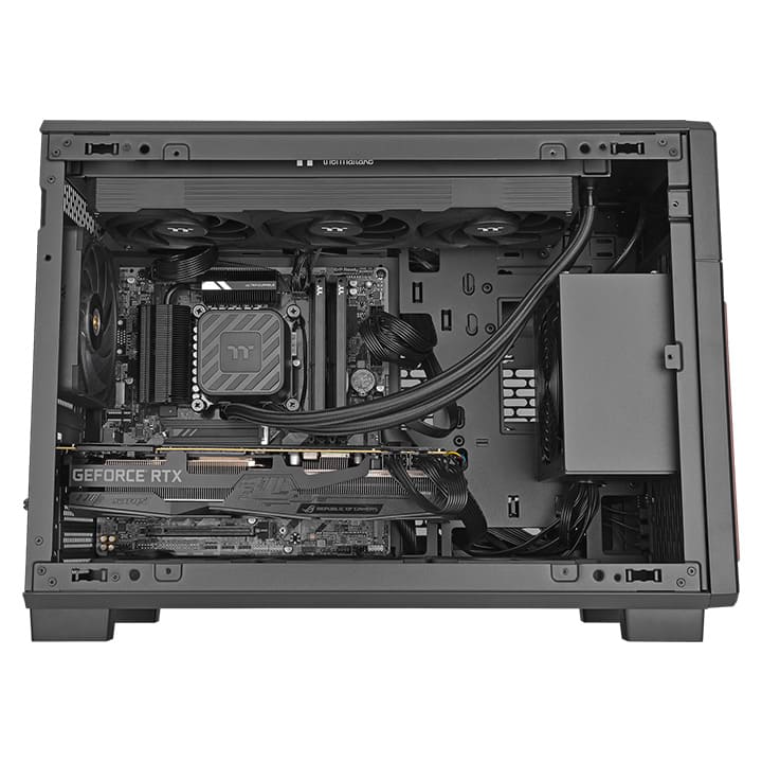

The OB360 brings a clean, refined look to any build with its dark, minimalist design. Seamlessly blending into the system, it keeps the visual focus clean while putting the emphasis on cooling performance.
| P/N | CL-W512-PL12BL-A |
|---|---|
| Model | CL-W512-PL12BL-A |
| Pump | Motor Speed : PWM 1500~2500 RPM Rated Voltage : 12V Rated Current : 0.35A Power Input : 4.2W Connector : 2510 – 4 Pin |
| Water Block | Material : Copper |
| Fan | Dimension : 360 x 120 x 25.4 mm Fan Speed : PWM 500~2000 R.P.M Rated Voltage : 12V Rated Current : 0.35 A Power Input : 4.2 W Air Flow : 53.9 CFM (per fan) Static Pressure : 2.36 mm-H2O (per fan) Noise Level : 32.3 dB-A (per fan) Connector : 2510 – 4 Pin |
| Tube | Length : 460mm Material : Rubber |
| Radiator | Dimension : 397 x 120 x 27 mm Material : Aluminum |
| Compatibility | CPU Socket : Intel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM5/AM4 |
