S380 TG ARGB Mid Tower Chassis

Name: S380 TG ARGB Mid Tower Chassis
Brand: Thermaltake Australia
SKU: CA-11K-00M1WN-00
Price: 179.0 AUD
Availability: InStock

SKU:CA-11K-00M1WN-00

$179.00 AUD

Sale Sold out

Product variants

Quantity

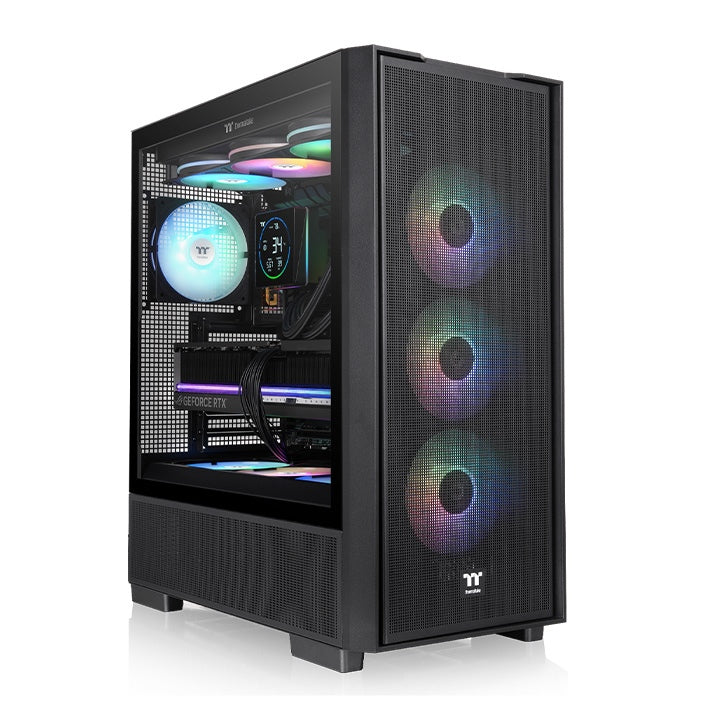

S380 TG ARGB Mid Tower Chassis is an ATX case that comes with a SF360 ARGB PWM Reverse Fan on the PSU Cover and a SF120 ARGB PWM fan at rear pre-installed.

View full details

Design
Specification
Download
How-to Videos

S380 TG ARGB Mid Tower Chassis

The S380 TG ARGB Mid Tower Chassis is an ATX case that comes with a SF360 ARGB PWM Reverse Fan on the PSU Cover and a SF120 ARGB PWM fan at rear pre-installed. Up to ten 120mm fans, and it supports up to a 360mm radiator at the front and top, providing flexible options for cooling solutions.

The image is for reference only.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the S380 TG ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

The image is for reference only.

Pre-installed Fan System

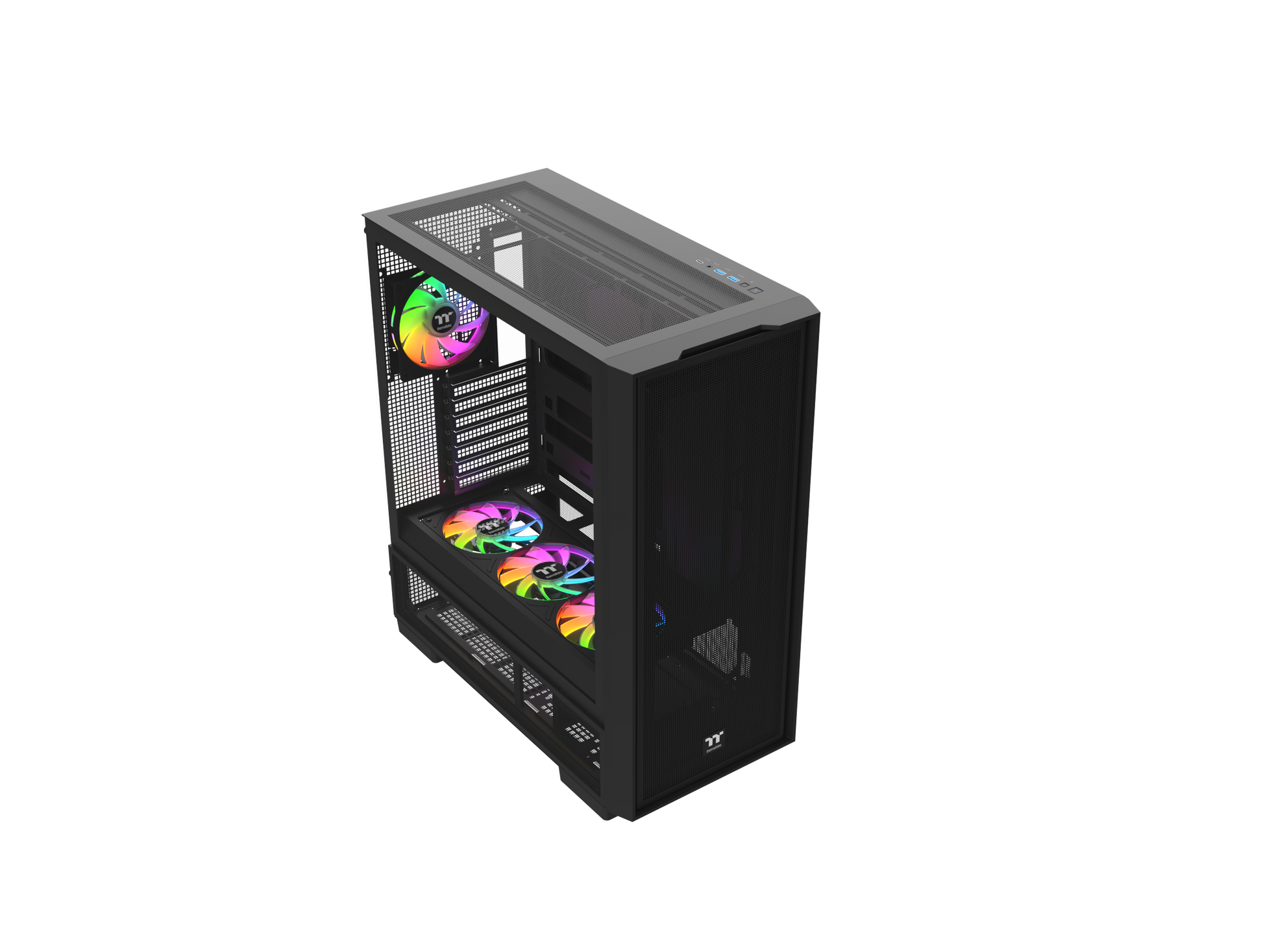

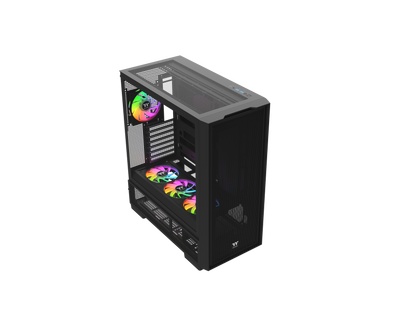

The S380 TG ARGB Mid Tower Chassis is pre-installed with a SF360 ARGB PWM Reverse Fan on PSU cover and a SF120 ARGB PWM Fan at rear.

The image is for reference only.

Tempered Glass Construction

The S380 TG ARGB Mid Tower Chassis features a 4mm tempered glass side panel for a distinctive look.

The image is for reference only.

GPU Support

The S380 TG ARGB Mid Tower Chassis comes with a GPU holder that provides additional support, preventing graphics card from sagging.

The image is for reference only.

Good Dust Protection

Removable front and bottom dust filters to keep the system dust-free.

The image is for reference only.

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design

The image is for reference only.

Opportunities For High-End Expansion

The S380 TG ARGB Mid Tower Chassis offers excellent expandability. It supports a CPU cooler up to 180mm, GPUs up to 400mm, and power supplies up to 200mm. Optimized for cooling, it comes with SF360 ARGB PWM Reverse Fan on PSU Cover and a SF120 ARGB PWM fan at rear pre-installed, and can fit up to ten 120mm or six 140mm fans. Radiator support up to 360mm at the top or front, and 120mm at the rear, giving flexible options for high-end builds.

120mm
140mm

120mm
140mm
240mm
280mm
360mm

Storage Support

For storage compatibility, the chassis supports up to two 3.5” HDDs or three 2.5” SSDs for flexible installation options.

The image is for reference only.

Handy I/O Ports

Front-located I/O ports consist of following functions:
• Power Button (Blue LED)
• Reset Button
• HD Audio
• 2 x USB 3.0 Type-A
• 1 x USB 3.2 Gen 2 Type-C

The image is for reference only.

All-in-One Compatibility List

	120 Series	240 Series	360 Series	140 Series	280 Series	420 Series
Top	●	●	●	●	●	-
Front	●	●	●	●	●	-
Rear	●	-	-	-	-	-

Fan Compatibility List

	120mm	140mm	200mm
Top	3	2	-
Front	3	3	-
Rear	1	1	-
Power Cover	3	-	-

P/N	CA-11K-00M1WN-00
Series	S Series
Case Type	Mid Tower
Dimensions	536 x 238 x 485mm (21.1x 9.37 x 19.1inch)
Side Panel	4mm Tempered Glass x 1
Color	Black
Material	SPCC
Cooling System	Power Cover (intake): 360 x 120 x 25 mm SF360 ARGB PWM Reverse Fan (500~1800rpm, 36.7 dBA) x 1 Rear (exhaust): 120 x 120 x 25 mm SF120 ARGB PWM Fan (500~1800rpm, 31.2 dBA) x 1
Drive Bays	2 x 3.5”+2 x 2.5” or 1 x 3.5” + 3 x 2.5”
Expansion Slots	7
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140 mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support	Top Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Front Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear Side(AIO): 1 x 120mm
Clearance	CPU cooler height limitation: 180mm VGA length limitation: 400mm PSU length limitation: 200mm

User Manual

File Name
Description
Size
Version
Release Date

S380 TG ARGB Manual
2025-11-06
