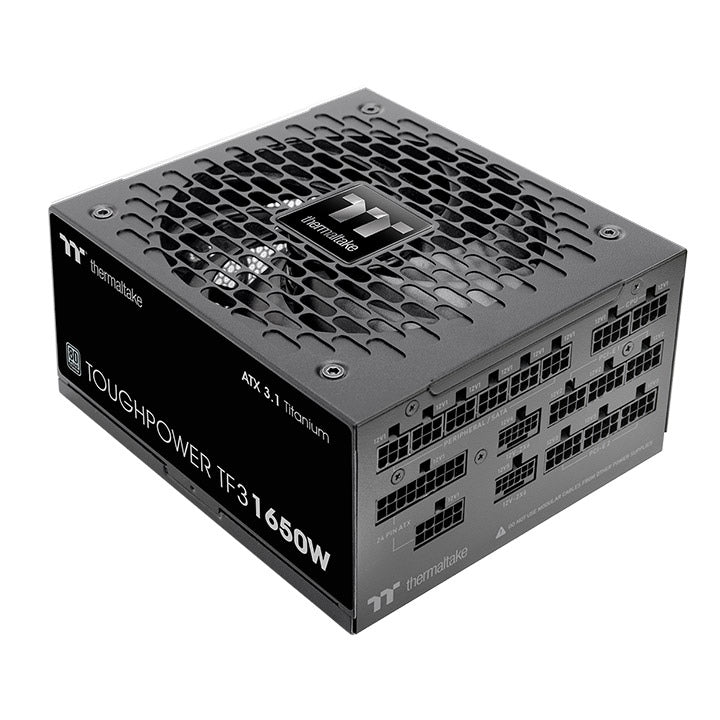

Toughpower TF3 1650W
Toughpower TF3 1650W
SKU:PS-TPD-1650FNFATA-1
Couldn't load pickup availability
It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 14cm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.
-
Design
-
Specification
-
Download
-
How-to Videos
Long-Term Durability with Premium Components
Built with 100% high-quality Japanese 105°C electrolytic capacitors, the unit ensures long-term stability and durability, even under high temperatures and continuous heavy loads.
Next-Gen Ready Power
Toughpower TF3 1650W delivers reliable, high-efficiency output with Intel ATX 3.1 and PCIe Gen 5.1 (12V-2x6) support. Its robust +12V rail and advanced DC-DC design ensure next-gen stability and precise power delivery.
Full Modular Layout with Optimized Airflow
Features a fully modular design with low-profile etched black cables for easy installation, better airflow, and a cleaner build.
Built for Intel ATX 3.1 Standard
The Toughpower TF3 1650W Titanium fully complies with Intel ATX 3.1 specifications, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers reliable 1650W continuous power at 50°C, meeting strict power timing standards to ensure system stability and compatibility with modern PC builds.
ATX 3.1
ATX 2.0
Total power excursion
PCIe Gen 5.1 Ready
The Toughpower TF3 1650W features two native PCIe 12V-2x6 connectors and includes two PCIe 12+4 pin cables, providing powerful and stable performance to meet the power demands of next-generation PCIe Gen 5.1 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.
High-Class Technologies
The DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100-240V~
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| DC OUTPUT | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | +12V5 | -12V | +5VSB |
| Max Output Current | 20A | 20A | 50A | 50A | 50A | 50A | 50A | 0.3A | 3.0A |
| Max Output Power | 120W | 600W | 600W | 600W | 600W | 600W | 3.6W | 15W | |
| 1650W | |||||||||
| Total Power | 1650W | ||||||||

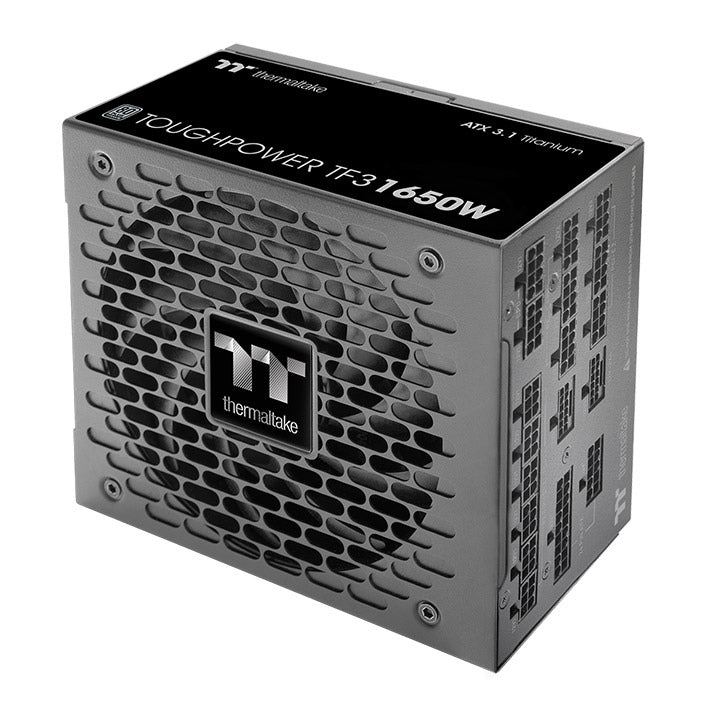

Thermaltake Customized Cooling Fan
The Toughpower TF3 1650W features the Thermaltake customized cooling fan, it is designed with specially tuned fan blades to push air further.
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
-
OCP
Over Current Protection
-
OVP
Over Voltage Protection
-
UVP
Under Voltage Protection
-
OPP
Over Power Protection
-
SCP
Short Circuit Protection
-
OTP
Over Temperature Protection
Unlock Peak Overclocking Performance
The OCM switch gives you the power to optimize your system's performance with ease. By default, the power supply operates in Multi-Rail mode with Over Current Protection (OCP) to ensure maximum safety for your components. For overclocking enthusiasts, a simple press of the OCM switch transitions the power supply to Single 12V rail mode, unleashing enhanced power delivery when you need it most.
80 PLUS Titanium Efficiency
Certified for 80 PLUS Titanium with up to 94% efficiency, this unit delivers 1650W continuous output at 50°C. It ensures reduced power loss and optimized energy use, ideal for high-performance and energy-conscious builds.
Space-Saving Etched Cable Design
Low-profile etched black cables simplify routing, reduce clutter, and enhance airflow. The fully modular layout and Zero Cable Platform allow for a cleaner, more efficient system build.

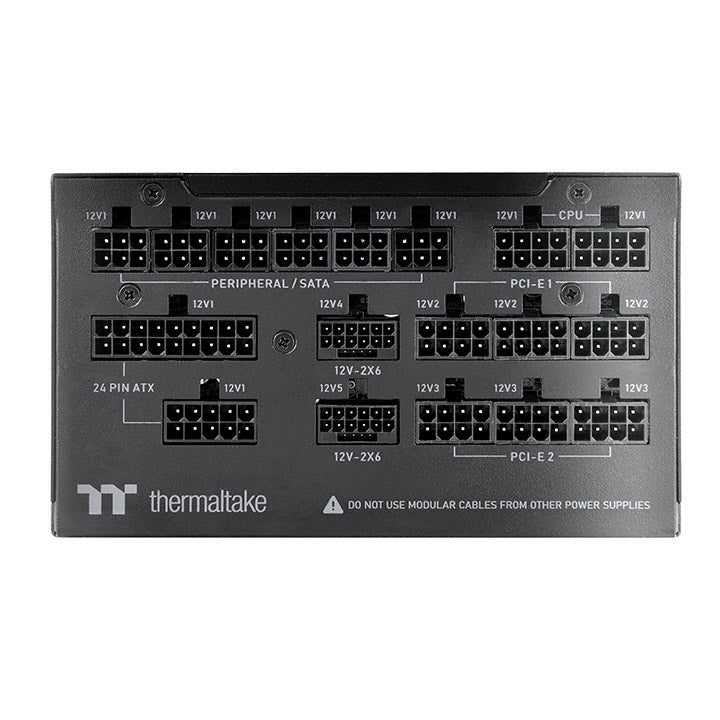

| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |  |
X 1 | 600mm |
| ATX 12V (4+4/8Pin) |
X 2 |  |
X 1 | 750mm |
 |
X 1 | 750mm | ||
| PCIe (6+2Pin) |
X 9 |  |
X 3 | 600mm |
 |
X 3 | 600mm+150mm | ||
| PCIe (12+4Pin) 600W |
X 2 |  |
X 2 | 600mm |
| SATA (5Pin) |
X 16 |  |
X 4 | 600mm+150mm+150mm+150mm |
| Peripheral (4Pin) |
X 8 |  |
X 2 | 600mm+150mm+150mm+150mm |
| P/N | PS-TPD-1650FNFATA-1 |
|---|---|
| Watts | 1650W |
| Max Output Capacity | 1650W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 165mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10 - 20A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | 0°C to +50°C |
| Operating Humidity | 10% to 90%,non-condensing |
| Storage Temperture | -40°C to +85°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Titanium at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/ cTUVus/BSMI/CCC/BIS/S-mark/EAC |
| PCI-E 6+2PIN | 9 |
| PCI-E 12+4PIN | 2 (600W) |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
- TOUGHPOWER TF3 1650W Manual
- 2025-10-02
