View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis

Name: View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis
Brand: Thermaltake USA
SKU: CA-1Y7-00MAWN-00
Price: 139.0 AUD
Availability: InStock

SKU:CA-1Y7-00MAWN-00

$139.00 AUD

Sale Sold out

Product variants

Quantity

View full details

Design
Specification
Download
How-to Videos

View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis

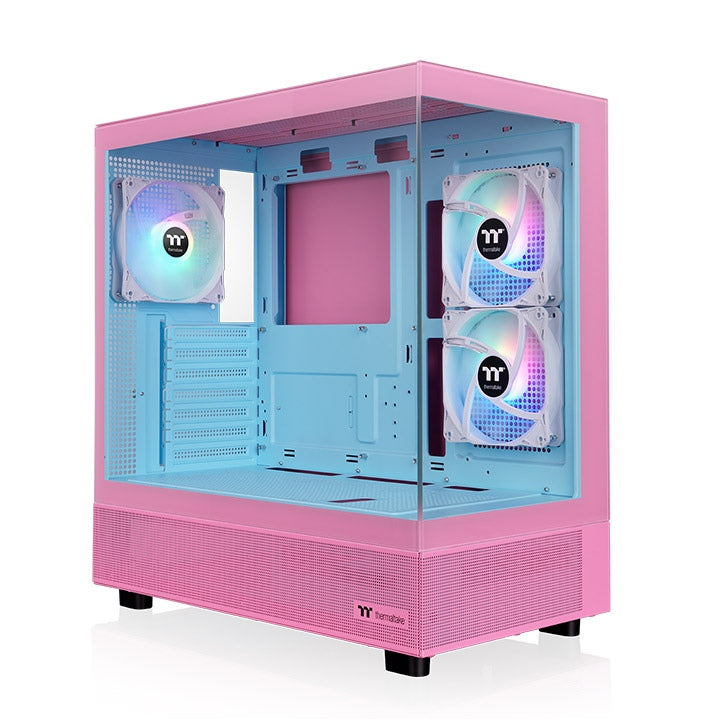

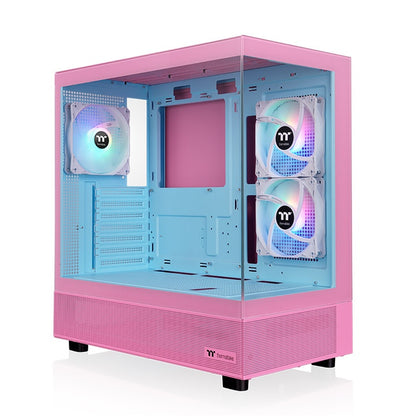

Built for amazing viewing, the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis.

The image is for reference only.

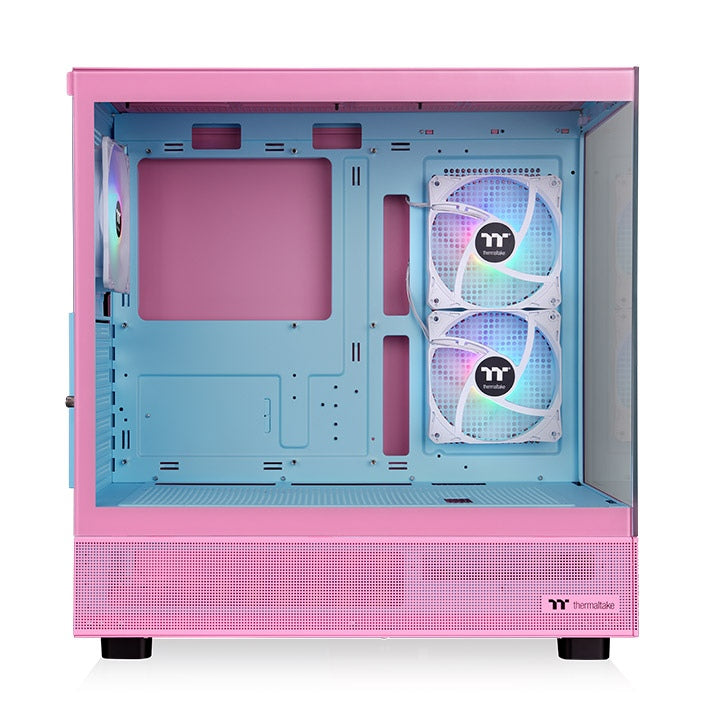

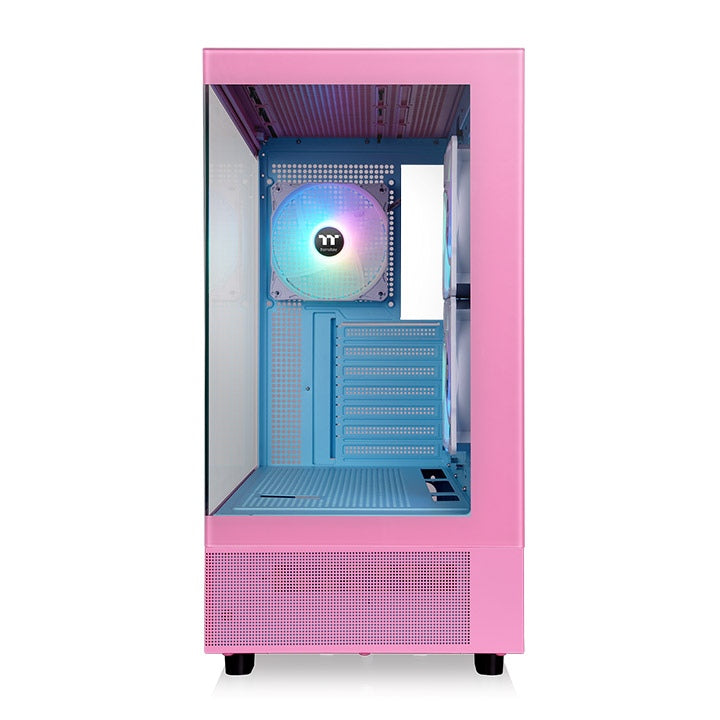

Tempered Glass Front and Left Panels

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

The image is for reference only.

Supports up to a 360mm Radiator on the Top

Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis.

The image is for reference only.

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the front and the motherboard side. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Unify Your Fans with Your Build!

Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

Built-in PSU Cover

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

Opportunities For High-End Expansion

The View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!

Dimensions

Fan Capacity

Radiator Capacity

CPU Cooler

Max height 180mm

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)

PSU

Max length
220mm (with HDD Cage)

VGA

Length limitation
420mm

120mm
140mm

120mm
140mm
240mm
280mm
360mm

How Much Storage Is Totally Up To You

For storage compatibility, the View 270 Plus TG ARGB Bubble Pink Mid Tower Chassis gives maximum support of up to two 2.5‘’ SSDs or two 3.5‘’ HDDs in total.

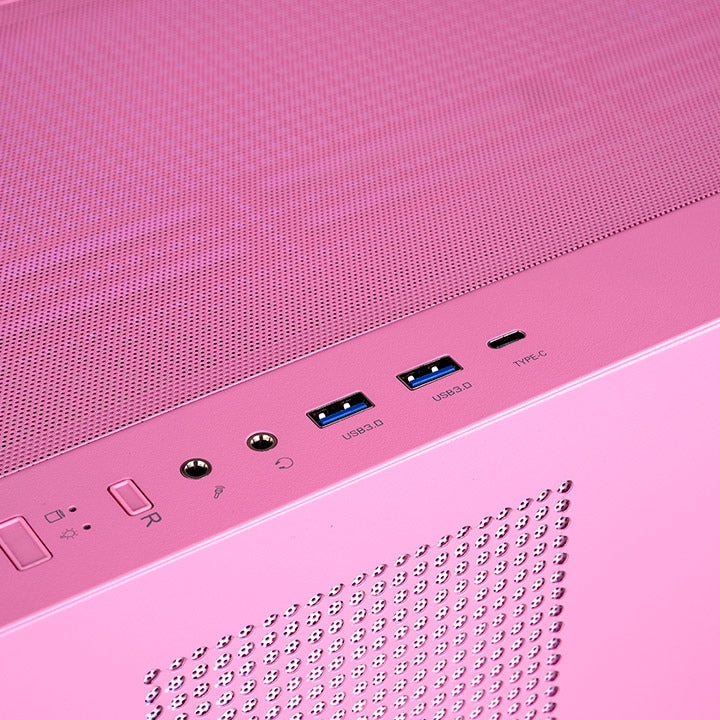

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.

All-in-One Compatibility List

	120 Series	240 Series	360 Series	140 Series	280 Series	420 Series
Top	●	●	●	-	-	-
Rear	●	-	-	-	-	-

Fan Compatibility List

	120mm	140mm
Top	3	2
Right(M/B Side)	2	-
Rear	1	1
Power Cover	3	-

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE
JRAINBOW Header
MSI
Addressable RGB LED Header
ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. By having more than two applications open may cause conflicts The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

P/N	CA-1Y7-00MAWN-00
Series	View
Case Type	Mid Tower
Dimensions	456 x 230 x 454 mm (18 x 9.1 x 17.9 inch)
Weight	6.35 kg / 14 lbs.
Side Panel	Tempered Glass x 2
Color	Bubble Pink
Material	SPCC
Cooling System	Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays	2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion Slots	7
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm
Clearance	CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm

User Manual

File Name
Description
Size
Version
Release Date

View 270 TG ARGB(C+F) Manual
2024-03-26
