View 370 TG ARGB Mid Tower Chassis

Name: View 370 TG ARGB Mid Tower Chassis
Brand: Thermaltake Australia
SKU: CA-11N-00M1WN-00
Price: 169.0 AUD
Availability: InStock

SKU:CA-11N-00M1WN-00

$169.00 AUD

Sale Sold out

Product variants

Quantity

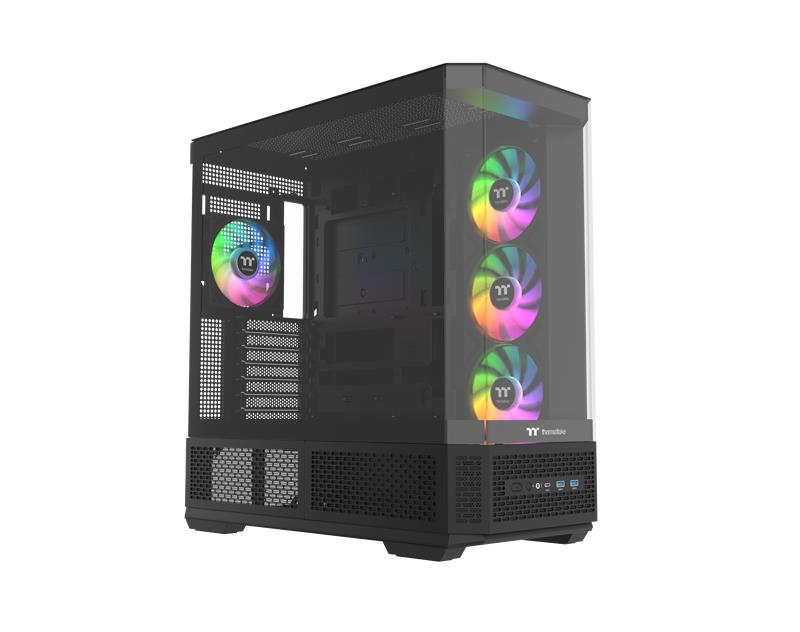

The View 370 TG ARGB Mid Tower Chassis is an ATX case that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear.

Users can add an optional 6.0" LCD Screen Kit, compatible with AI Forge via TT RGB PLUS 3.0, for easy customization through the TT PlayLink app.

View full details

Design
Specification
Download
How-to Videos

Motherboard

Mini ITX/Micro
ATX/ATX

SIDE PANELS

4mm TG × 4

Fan Support

Up to ten
120mm fans

AIO Support

360/280/240/140/120mm

Dimensions (mm)

492.5 x 235 x 478.8

Clearance (mm)

CPU Cooler: 165
GPU: 420
Power Supply: 279

I/O Ports

1 × USB Type-C
2 × USB 3.0
1 × HD-Audio

Storage

1 × 3.5” HDD
2 × 2.5” SSD

The image is for reference only.

View 370 TG ARGB Mid Tower Chassis

The View 370 TG ARGB Mid Tower Chassis is an ATX case that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, one 360mm radiator on the top or at the motherboard side, giving end-users greater flexibility to build their ideal configuration.

The image is for reference only.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 370 TG ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

The image is for reference only.

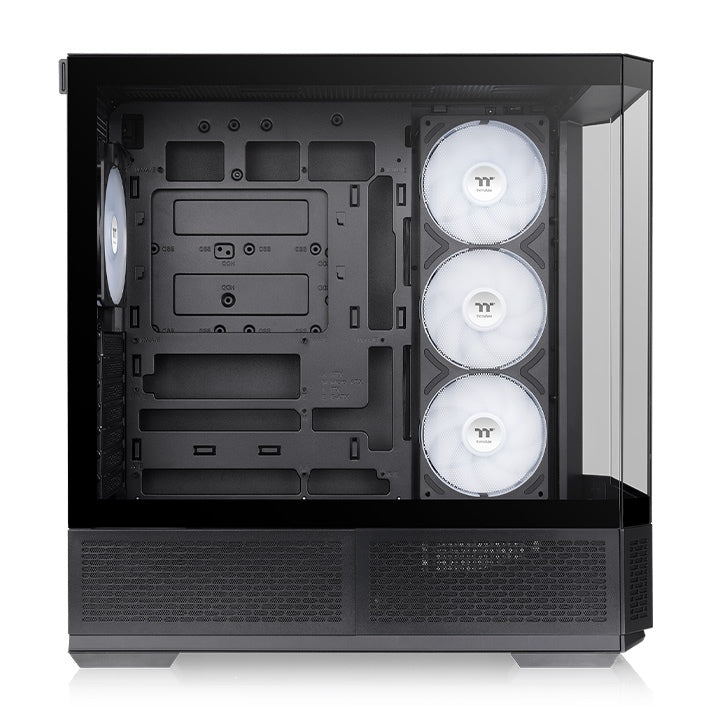

Pre-installed Fan System

The View 370 TG ARGB is pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

The image is for reference only.

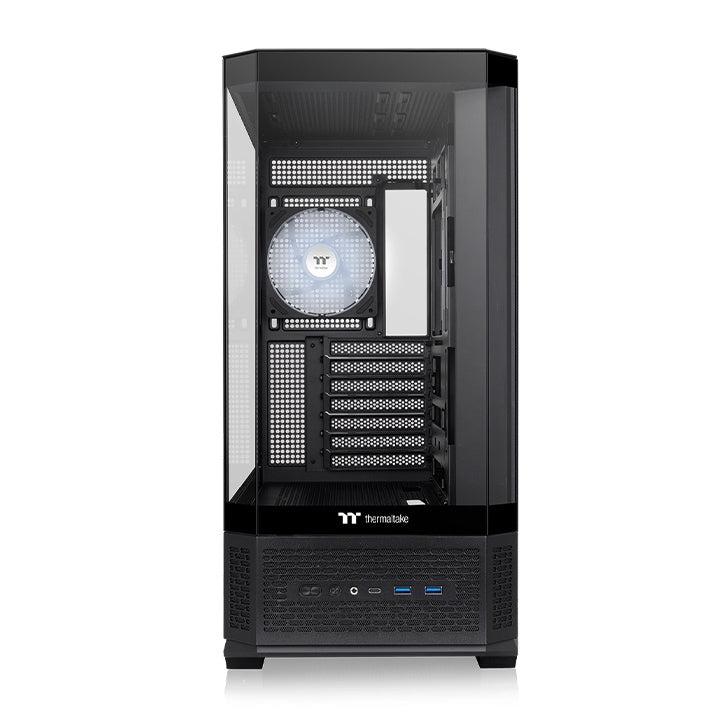

Tempered Glass Front and Left Panels

The View 370 TG ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

The image is for reference only.

Good Radiator Support

Providing excellent cooling support, users can choose to place a 360mm radiator on the on the top or at the motherboard side of theView 370 TG ARGB Mid Tower Chassis.

Find out more about our 360mm AIO

The image is for reference only.

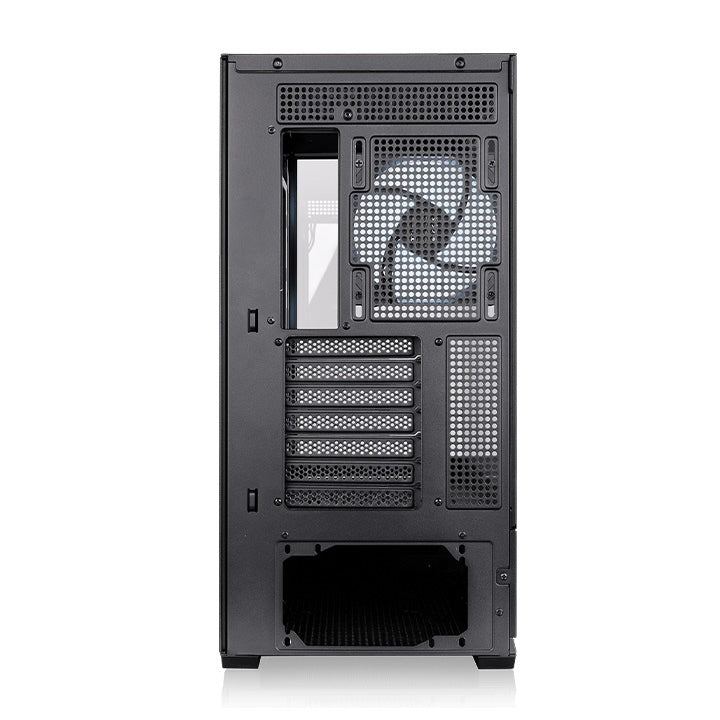

Display It Your Way

The rotatable PCI-E slots, along with an optional riser cable (sold separately), support both horizontal and vertical GPU mounting configurations.

Find Out More About Our Riser Cable

The image is for reference only.

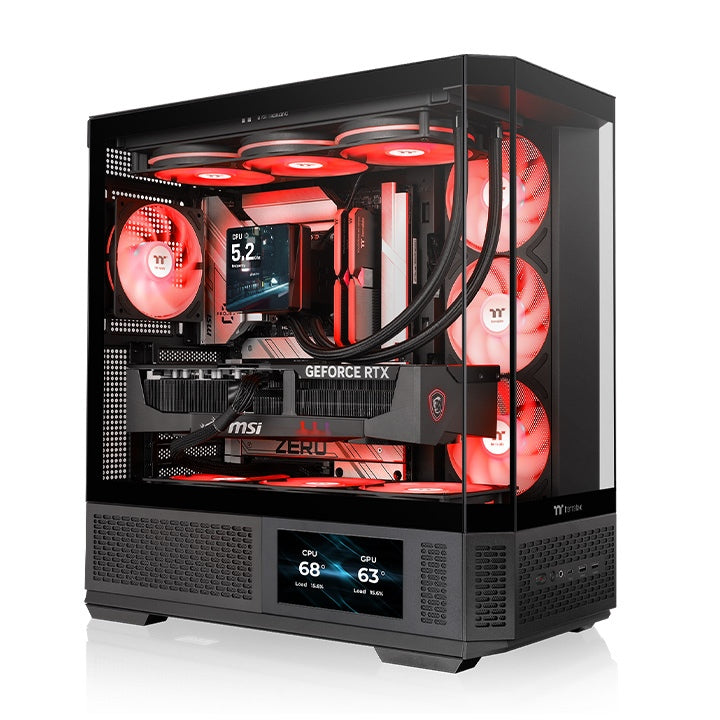

Visually Pleasing, Totally Interactive

Maximize your View 370 TG ARGB Mid Tower Chassis visual effects by upgrading it with our LCD Screen Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.

LEARN MORE ABOUT LCD SCREEN KIT

The image is for reference only.

Personalize Your LCD Display

Through TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

GF500 Flight Simulator Cockpit side view with adjustable components

Unleash Limitless Creativity with AI Forge

Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.

AI Forge Setup Guide AI Forge FAQ

Note: AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI’s pricing standard as of August 2025, the average cost per image generation is about USD 0.04.

*The video is for reference only.

Enhanced Dust Protection

Filters at top, bottom, and PSU chamber vents keep your system clean.

The image is for reference only.

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

The image is for reference only.

Storage Support

For storage compatibility, the View 370 TG ARGB Mid Tower Chassis supports one 3.5” HDD plus one 2.5” or two 2.5” SSDs.

The image is for reference only.

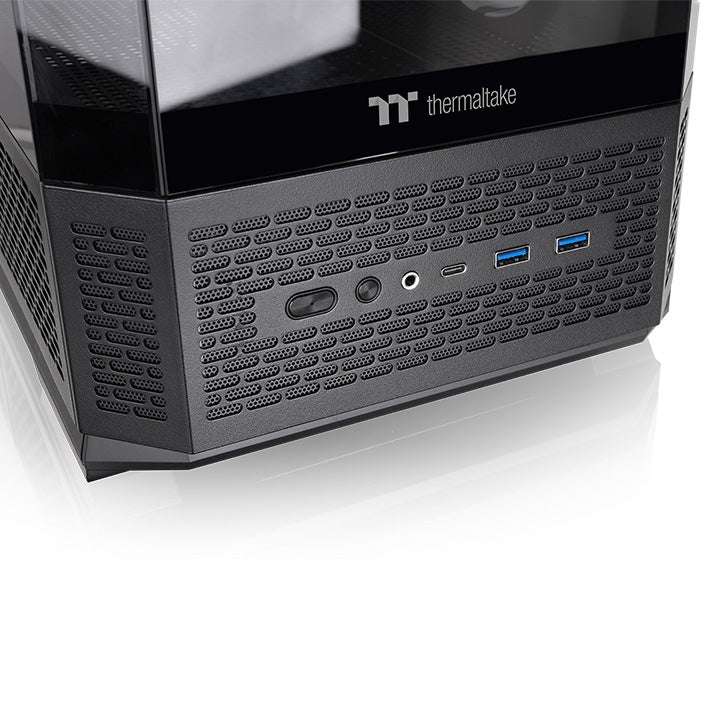

Handy I/O Ports

• Power Button with Integrated Power LED
• Reset Button
• USB 3.2 (Gen 2) Type-C x 1
• USB 3.0 Type-A x 2
• HD Audio x 1

The image is for reference only.

All-in-One Compatibility List

	120 mm	240 mm	360 mm	140 mm	280 mm	420 mm
Top	●	●	●	●	●	-
MB Side	●	●	●	-	-	-
Rear	●	-	-	-	-	-

Fan Compatibility List

	120mm	140mm	200mm
Top	3	2	-
MB Side	3	-	-
Rear	1	-	-
Power Cover	3	-	-

P/N	CA-11N-00M1WN-00
Series	View
Case Type	Mid Tower
Dimensions	492.5 x 235 x 478.8 mm (19.39 x 9.25 x 18.85 inch)
Side Panel	4mm Tempered Glass x 4
Color	Black
Material	SPCC
Cooling System	M/B Side(intake): 360 x 120 x 25 mm SF360 ARGB PWM Reverse Fan (500~1800rpm, 36.4 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm SF120 ARGB PWM Fan (500~1800rpm, 29.3 dBA) x 1
Drive Bays	1 x 3.5”+1 x 2.5” or 2 x 2.5”
Expansion Slots	7 (Rotatable Patented Design)
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm MB Side: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 3 x 120mm, 2 120mm, 1 x 120mm
Radiator Support	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm MB Side: 1x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm
Clearance	CPU cooler height limitation: 165mm VGA length limitation: 420mm PSU length limitation: 279mm PSU suggested length: 200mm
