View 380 TG ARGB Mid Tower Chassis
View 380 TG ARGB Mid Tower Chassis
SKU:CA-1Z2-00M1WN-00
Couldn't load pickup availability

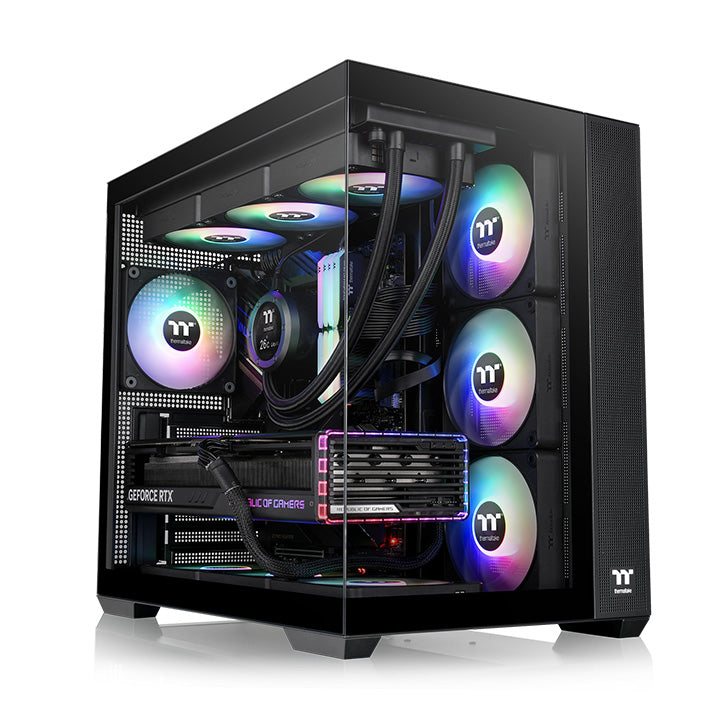

The View 380 TG ARGB focuses on maximizing viewing angles of components thanks to front and side tempered glass panel, and a spacious dual chamber design, while still maintaining mid tower height. Along with that the View 380 TG ARGB supports Universal ATX and comes with four 120mm ARGB Lite Fans preinstalled.
-
Design
-
Specification
-
Download
-
How-to Videos
- The image is for reference only.

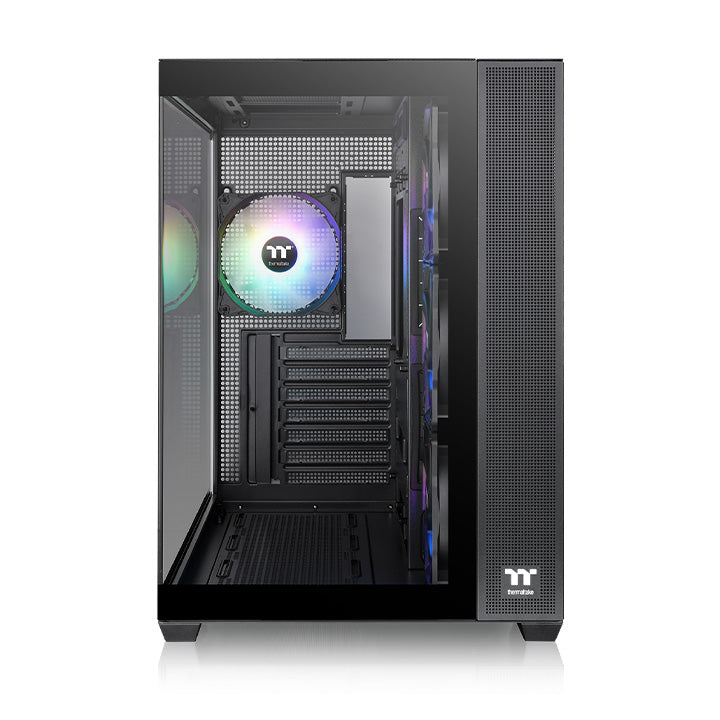

Take in the view thanks to front and left tempered glass panels for better visibility of your build inside.
- The image is for reference only.

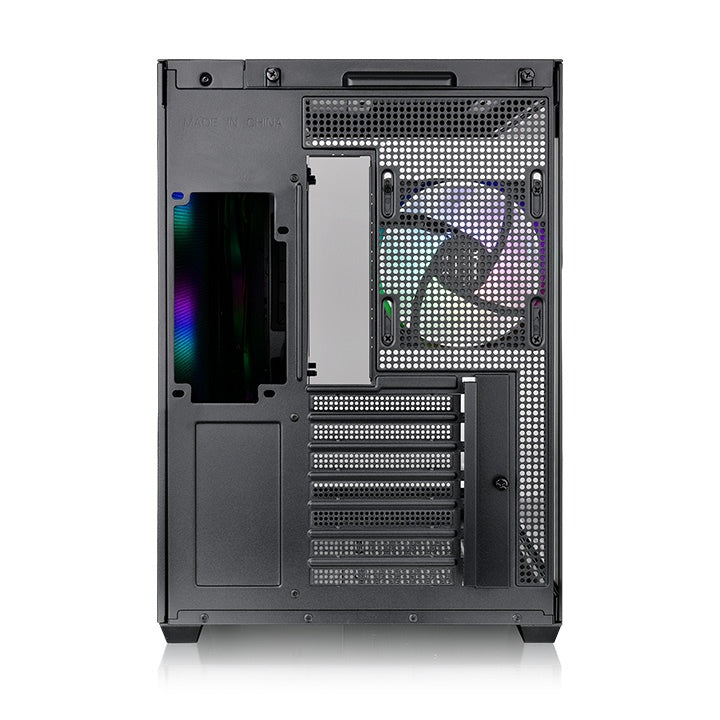

With new innovative motherboard layouts, we wanted the View 380 to be ready for current and future designs whether it’s a standard ATX configuration or a hidden connector board. To support this the View 380 implements our Universal ATX layout, which features additional cutouts to allow access in the rear of the case for connectors.
*Confirmed compatibility with hidden connector motherboards:
ROG MAXIMUS Z790 HERO BTF
ASUS TUF GAMING Z790-BTF WIFI
MSI Z790 PROJECT ZERO
- The image is for reference only.
The View 380 is capable of accepting up to a 360mm radiator on the top of the chassis as well as up to a 280mm radiator on the side of the chassis. Check out the links below for some options from TT.
- The image is for reference only.

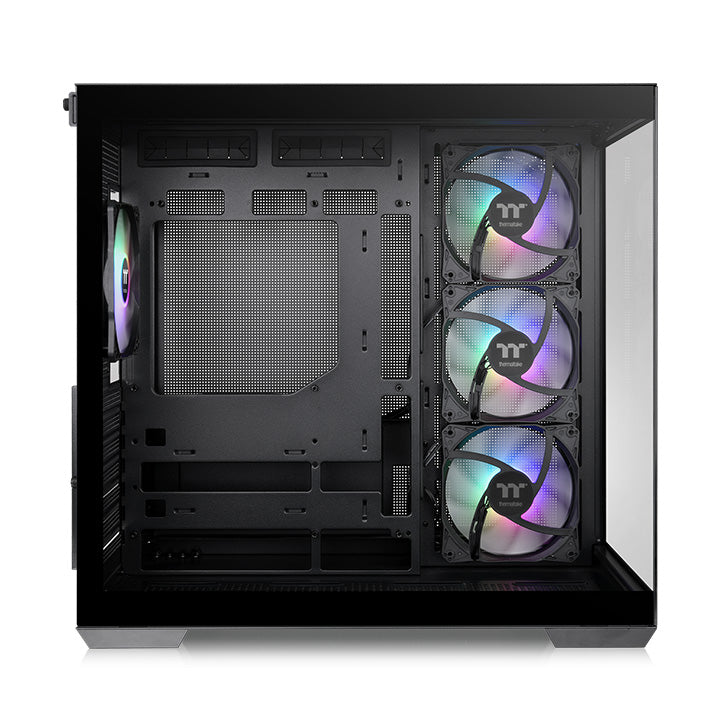

The View 380 comes with four 120mm ARGB Lite Fans pre-installed, with one at the rear of the chassis to provide exhaust and an additional three mounted on the side to provide intake. Daisy Chain connections for 5V ARGB and PWM fan control make wiring simple and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI and ASRock.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm

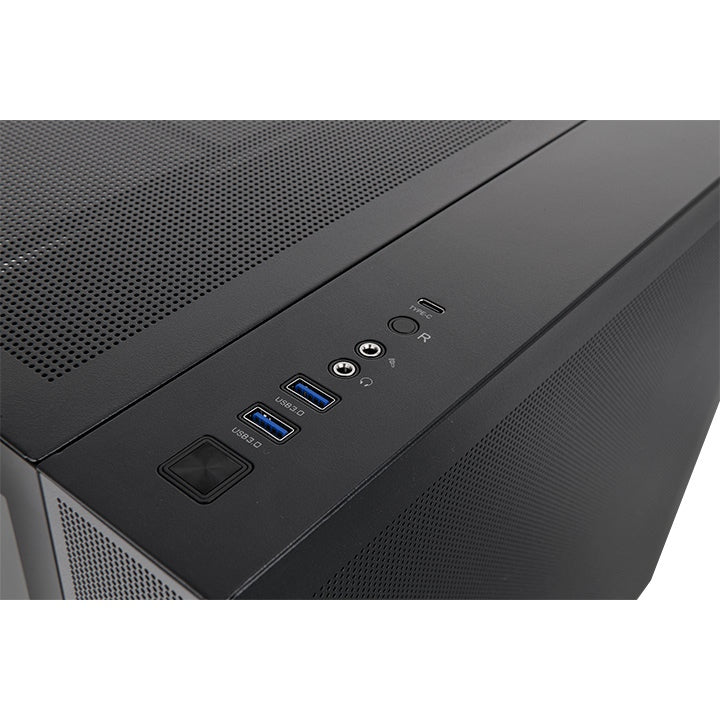

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | - | - | - |
| (M/B Side) Right | ● | ● | - | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| Bottom | - | - | - | - | - | - |
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | - | - | - |
| (M/B Side) Right | ● | ● | - | ● | ● | - |
| Rear | - | - | - | - | - | - |
| Bottom | ● | ● | ● | - | - | - |
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | - |
| Right(M/B Side) | 3 | 2 |
| Rear | 1 | - |
| Power Cover | 3 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
